Best Industrial Grey Polyurethane Swivel Castors with Total Brake Taishan Manufacturer

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1RB80D34BUPRX	80x34	105x80	80x60	11x9	36	100	120
07P1RB80D34BUPBA	80x34	105x80	80x60	11x9	36	100	120
07P1RB100D34BUPRX	100x34	105x80	80x60	11x9	40	125	160
07P1RB100D34BUPBA	100x34	105x80	80x60	11x9	40	125	160
07P1RB125D36BUPRX	125x36	105x80	80x60	11x9	40	155	200
07P1RB125D36BUPBA	125x36	105x80	80x60	11x9	40	155	200
07P1RB160D40BUPRX	160x40	135x110	105x80	13.5x11	60	190	300
07P1RB160D40BUPDA	160x40	135x110	105x80	13.5x11	60	190	300
07P1RB200D50BUPRX	200x50	135x110	105x80	13.5x11	60	235	300
07P1RB200D50BUPDA	200x50	135x110	105x80	13.5x11	60	235	300

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Total Brake

Mounting Type

Top Plate

Castor Bearing

Single ball bearing

Temperature Range

-40 to +80°C

Hardness of Tread

92°+3 Shore A

Threadguard

Small plastic

Color

Grey

Description

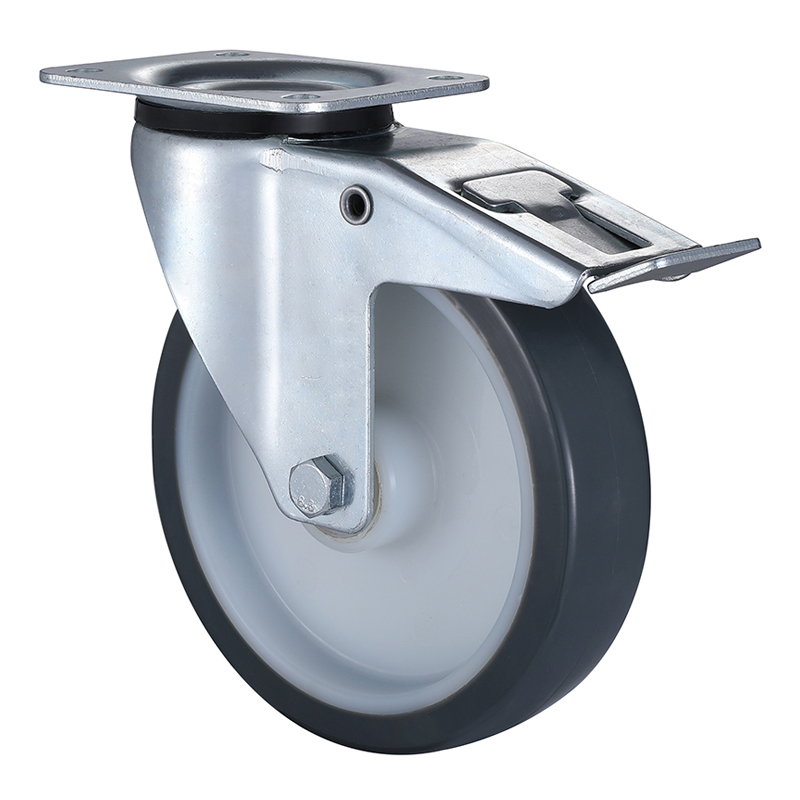

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 92, Grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 80mm to 200mm, load capacity 120kg to 300kg, Suitable for any terrain. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

Applicable Terrain
