Best Industrial Blue Elastic Rubber Total Brake Castors Wholesaler

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1RB80A35CEPRX	80x35	105x80	80x60	11x9	36	100	100
07P1RB100A36CEPRX	100x36	105x80	80x60	11x9	40	125	150
07P1RB125A36CEPRX	125x36	105x80	80x60	11x9	40	155	200
07P1RB160A48CEPRX	160x48	135x110	105x80	13.5x11	60	190	300
07P1RB200A48CEPRX	200x48	135x110	105x80	13.5x11	60	235	300

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Polyamide

Castor Housing

Total Brake

Mounting Type

Top Plate

Castor Bearing

Roller bearing

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Blue

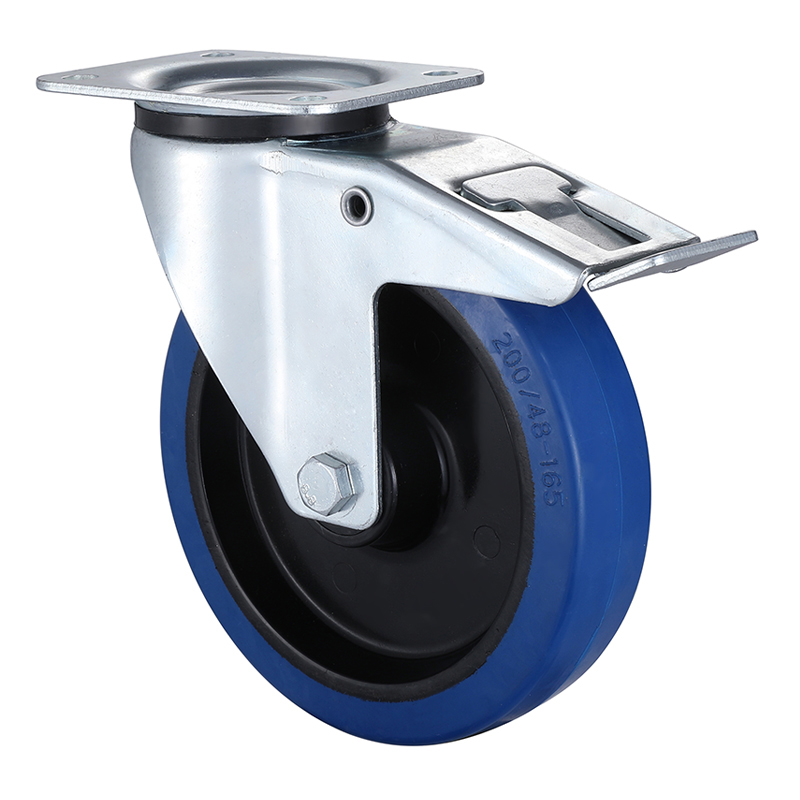

Description

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, blue elastic rubber wheel tread, black nylon wheel centre, roller bearings, diameter 80mm to 200mm, load capacity 100kg to 300kg, Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping,

Applicable Terrain
