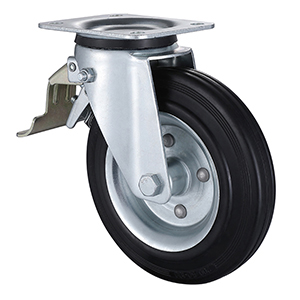

Excellent Quality Industrial Black Super Elastic Rubber Tail Brake Castors Wholesale

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1FB160C40JEHRX	160x40	135x110	105x80	13.5x11	52	190	120
07P1FB200C50JEHRX	200x50	135x110	105x80	13.5x11	54	235	225
07P1FB250C60JEHRX	250x60	135x110	105x80	13.5x11	66	290	350
08P1FB260C85JEHRX	260x85	135x110	140x140	15x15	70	295	400

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Pressed steel

Castor Housing

Tail Brake

Mounting Type

Top Plate

Castor Bearing

Roller bearing

Temperature Range

-20 to +80°C

Hardness of Tread

55°+5 Shore A

Threadguard

None

Color

Black

Description

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 55 black Super elastic rubber wheel tread, pressed centre, roller bearings, diameter 125mm to 200mm, load capacity 120kg to 350kg, Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
