Top Industrial Grey Thermoplastic Polyurethane Swivel Castor Wheels Exporter

Industrial Swivel Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Top Industrial Grey Thermoplastic Polyurethane Swivel Castor Wheels Exporter

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number
wheel bearing

Bearing Type

size-diameter.jpg size-tread-width.jpg

Wheel Diameter & Width of Tread

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Offset

( mm )


Overall Height

( mm )


Load Capacity

( kg 4km/h )

06P1S100D34BUPBAsingle ball bearing100x34135x110105x8013.5x1145128160
06P1S125D36BUPRXcastors roller bearing125x36135x110105x8013.5x1148155250
06P1S125D36BUPBAsingle ball bearing

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Single ball bearing

Temperature Range

-40 to +80°C

Hardness of Tread

92°+3 Shore A

Threadguard

None

Color

Grey

Description

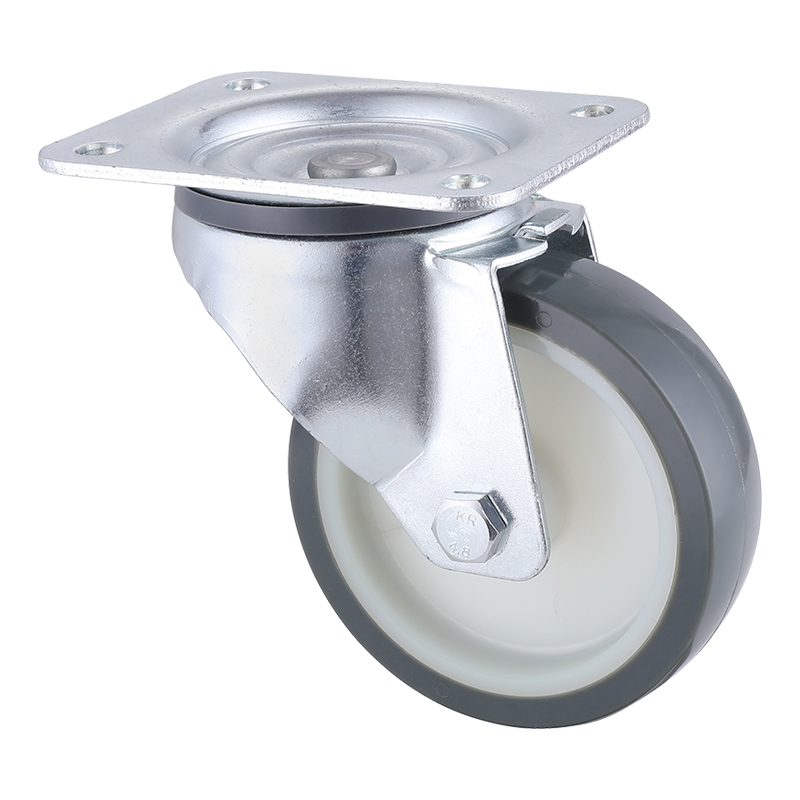

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 92+3, grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 100mm and 125mm, load capacity 160kg to 250kg, Applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.

Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
