Top Industrial Green Elastic Polyurethane Swivel Castor Wheels Company

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1S80H38JUHDX	80x38	105x80	80x60	11x9	40	108	200
09P1S100H40JUHDX	100x40	105x80	80x60	11x9	40	132	250
09P1S125H40JUHDX	125x40	105x80	80x60	11x9	40	155	300
09P1S150H50JUHDX	150x50	135x110	105x80	13.5x11	52	195	400
09P1S160H50JUHDX	160x50	135x110	105x80	13.5x11	52	200	440
09P1S200H50JUHDX	200x50	135x110	105x80	13.5x11	52	245	500

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

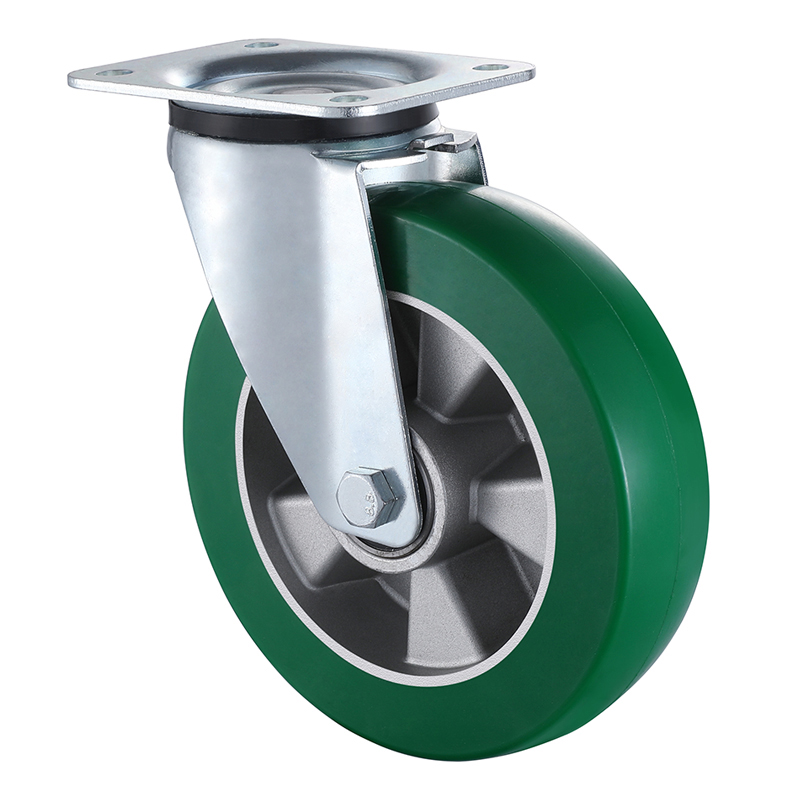

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 92+3, green elastic polyurethane wheel tread, aluminium wheel centre, diameter 80mm to 200mm, load capacity 200kg to 500kg. Suitable for any terrain. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

Applicable Terrain
