Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Offset ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|---|
07P1S125C37.5JEHRX | 125x37.5 | 105x80 | 80x60 | 11x9 | 36 | 155 | 120 | |
07P1S160C40JEHRX | 160x40 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 225 | |
07P1S200C50JEHRX | 200x50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 350 | |
07P1S250C60JEHRX | 250x60 | 135x110 | 105x80 | 13.5x11 | 66 | 290 | 400 | |
08P1S260C85JEHRX | 260x85 | 175x175 | 140x140 | 15x15 | 70 | 295 | 400 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Pressed steel
Castor Housing
Swivel
Mounting Type
Top Plate
Castor Bearing
Roller bearing
Temperature Range
-20 to +80°C
Hardness of Tread
55°+5 Shore A
Threadguard
None
Color
Black
Description

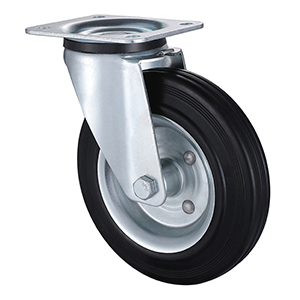

housing make of pressed steel, bright zinc plated,blue passivated,double ball bearing swivel head. Shore A 55 Super elastic rubber tyre,pressed steel wheel hub. diameter 125mm to 260mm, load capacity 120kg to 400kg, Applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
