Load capacity 300-1500kg, suitable for heavy equipment.
Multiple sizes, ideal for a variety of industrial applications.
Diameter 75-125mm, suitable for indoor smooth floor.
Aceitamos todos os desafios e as suas necessidades são a nossa principal prioridade.
Large size 260mm, load capacity 150kg, suitable for outdoor cart.
Specially designed for shopping carts with multiple braking options.
Specially designed for hot environment applications up to 250°C.
Resistant to most chemicals, oils, greases, solvents and cleaning.
Wheel Tread
Nylon
Temperature
-20 to +80°C
Standard
EN 12532
Hardness of Tread
no
Castor Description

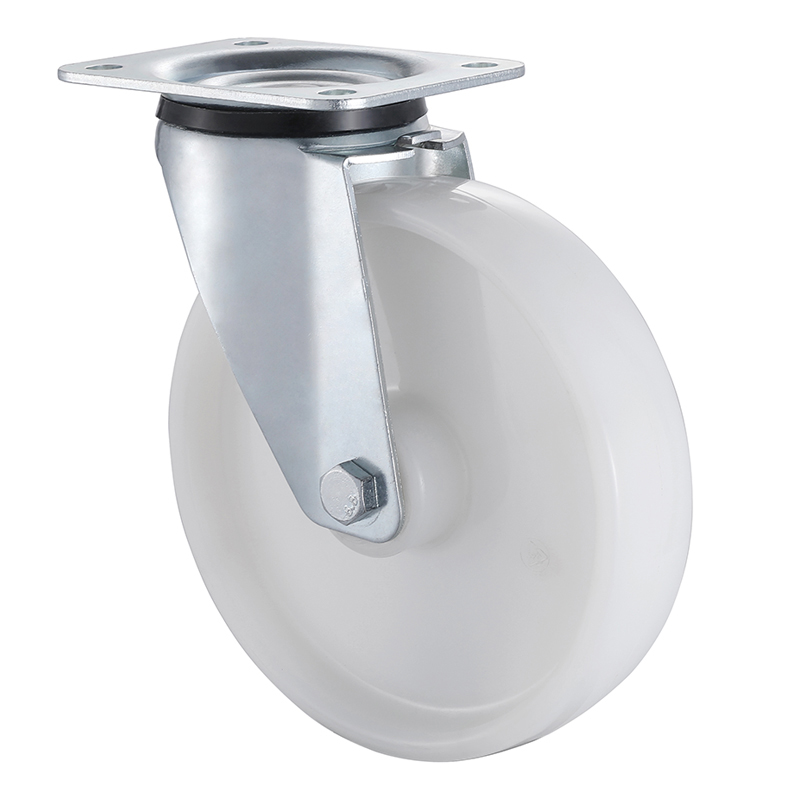

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, can be rotated freely in 360 degrees, white nylon wheel, diameter 80mm to 200mm, load capacity 150kg to 300kg, suitable for any terrain. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.
Swipe right to see the full table
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 07P1S80B34BPAPX |  | 80x34 | 105x80 | 80x60 | 11x9 | 36 | 100 | 150 |
| 07P1S80B34BPARX |  | |||||||
| 07P1S100B36BPAPX | | 100x36 | 105x80 | 80x60 | 11x9 | 36 | 125 | 180 |
| 07P1S100B36BPARX | | |||||||
| 07P1S125B40BPAPX | | 125x40 | 105x80 | 80x60 | 11x9 | 36 | 155 | 200 |
| 07P1S125B40BPARX | | |||||||
| 07P1S160B40BPAPX | | 160x40 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 300 |
| 07P1S160B40BPARX | | |||||||
| 07P1S200B46BPAPX | | 200x46 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 300 |
| 07P1S200B46BPARX | |
Tile Floor
Resin Cement Floor
