Popular Industrial Yellow Polyurethane Swivel Castors Taishn Company

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Bearing Type	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
06P1S100E38JUADX		100x38	135x110	105x80	13.5x11	45	128	300
06P1S125E38JUADX		125x38	135x110	105x80	13.5x11	48	155	350

Castor
Number

Bearing Type

Wheel Diameter & Width of Tread

( mm )

Size of Plate

( mm )

Plate Hole Center

( mm )

Plate Hole

( mm )

Offset

( mm )

Overall Height

( mm )

Load Capacity

( kg 4km/h )

06P1S100E38JUADX

100x38

135x110

105x80

13.5x11

128

300

06P1S125E38JUADX

125x38

135x110

105x80

13.5x11

155

350

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

94° Shore A

Threadguard

None

Color

Yellow

Description

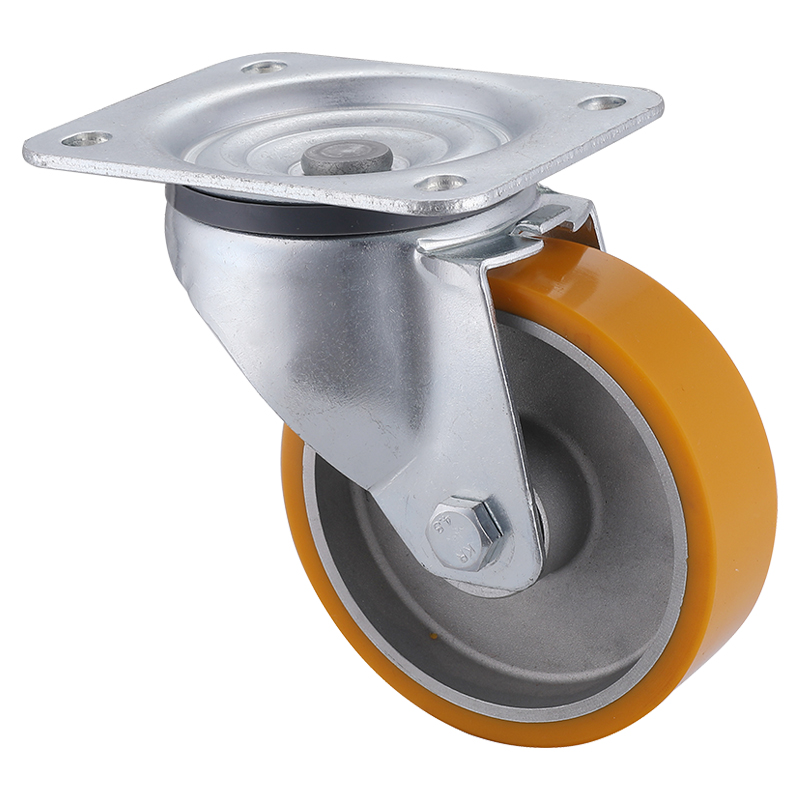

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 94, yellow polyurethane wheel tread, casting Aluminium wheel centre, diameter 100mm to 125mm, load capacity 300kg to 350kg, These castors are from the leading castor manufacturers in the industry, factory direct sales, no middleman, can get these castors at the best price, don't hesitate to contact our sales manager immediately.

Applicable Terrain
