Industry Leading Industrial Yellow Polyurethane Swivel Castors Bulk

Industrial Swivel Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Industry Leading Industrial Yellow Polyurethane Swivel Castors Bulk

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number
wheel bearing

Bearing Type

size-diameter.jpg size-tread-width.jpg

Wheel Diameter & Width of Tread

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Offset

( mm )


Overall Height

( mm )


Load Capacity

( kg 4km/h )

09P1S80E32JUIDXdoubles ball bearing80x32105x8080x6011x940108250
09P1S100E32JUIDXdoubles ball bearing100x32105x8080x6011x940132350
09P1S125E38JUIDXdoubles ball bearing125x38105x8080x6011x940155350
09P1S150E50JUIDXdoubles ball bearing150x50135x110105x8013.5x1152195500
09P1S160E50JUIDXdoubles ball bearing160x50135x110105x8013.5x1152200500
09P1S200E50JUIDXdoubles ball bearing200x50135x110105x8013.5x1152245500

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Iron

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

94° Shore A

Threadguard

None

Color

Yellow

Description

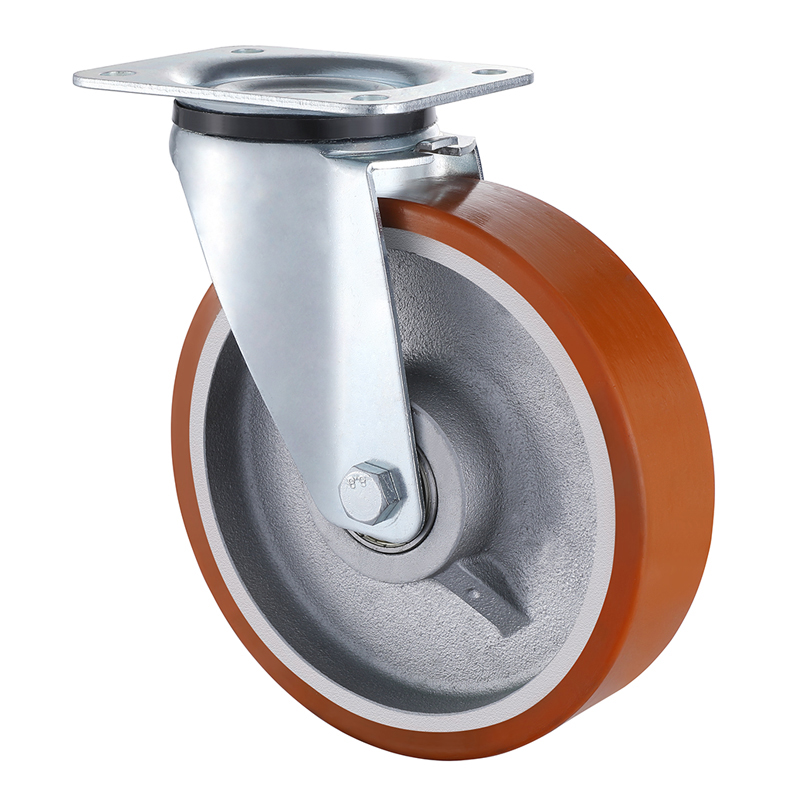

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 94, yellow polyurethane wheel tread, casting iron wheel centre, diameter 80mm to 200mm, load capacity 250kg to 500kg, These castors are made by Taishan to provide you with the highest quality and reliability. We are also proud to offer a variety of other industrial castor solutions, so if you need help or can't find what you need, please contact us.

Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
