Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Offset ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|---|
06P1S100B38BPHDX | 100x38 | 135x110 | 105x80 | 13.5x11 | 45 | 128 | 350 | |
06P1S125B38BPHDX | 125x38 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 350 |
Castor Information
Wheel Tread Material
Nylon
Wheel Centre Material
Polyamide
Castor Housing
Swivel
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
no
Threadguard
None
Color
White
Description

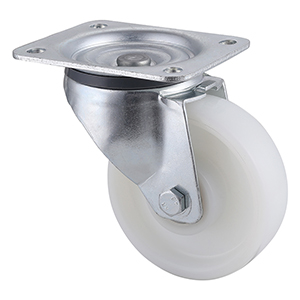

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, can be rotated freely in 360 degrees, white nylon wheel, diameter 100mm and 125mm, load capacity 350kg, applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.
Applicable Terrain
Tile Floor
Resin Cement Floor
