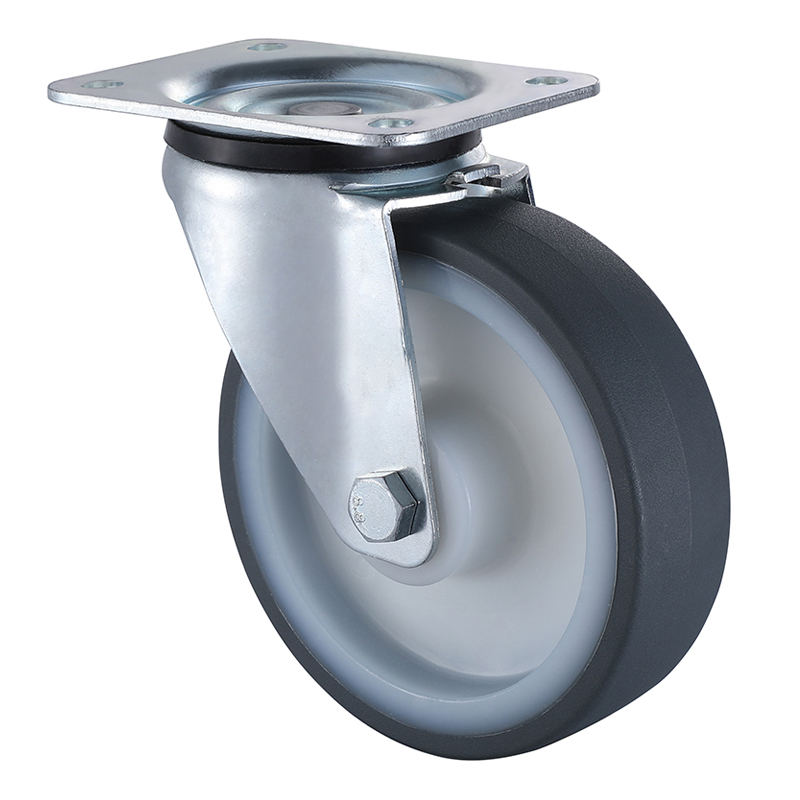

Industry Leading Industrial Grey Thermoplastic Polyurethane Swivel Castors Wholesaler

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1S80D38BUMRX	80x38	105x80	80x60	11x9	40	108	180
09P1S100D40BUMRX	100x40	105x80	80x60	11x9	40	132	300
09P1S125D40BUMRX	125x40	105x80	80x60	11x9	40	155	350
09P1S160D45BUMRX	160x45	135x1110	105x80	13.5x11	52	200	500
09P1S200D50BUMRX	200x50	135x1110	105x80	13.5x11	52	245	500

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Roller bearing

Temperature Range

-40 to +80°C

Hardness of Tread

92°+3 Shore A

Threadguard

None

Color

Grey

Description

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated in parallel at any angle, Shore A 92+3, grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 80mm to 200mm, load capacity 180kg to 500kg, Suitable for any terrain. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

Applicable Terrain
