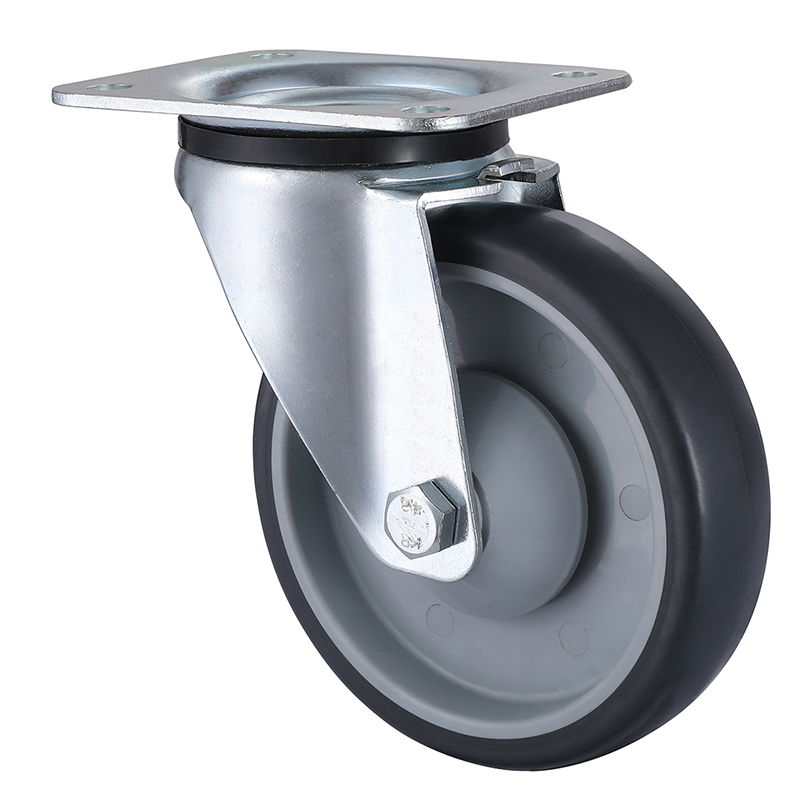

Industrial Swivel Castors with Grey Thermoplastic Rubber Wheel in China Manufacturer

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1S100D32DTRBA	100x32	105x80	80x60	11x9	36	125	100
07P1S100D32DTRRX	100x32	105x80	80x60	11x9	36	125	100
07P1S125D32DTRBA	125x32	105x80	80x60	11x9	36	155	150
07P1S125D32DTRRX	125x32	105x80	80x60	11x9	36	155	150
07P1S160D40DTRBA	160x40	135x110	105x80	13.5x11	52	190	200
07P1S160D40DTRRX	160x40	135x110	105x80	13.5x11	52	190	200
07P1S200D40DTRBA	200x40	135x110	105x80	13.5x11	54	235	250
07P1S200D40DTRRX	200x40	135x110	105x80	13.5x11	54	235	250

Castor Information

Wheel Tread Material

Thermoplastic rubber

Wheel Centre Material

Polypropylene

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Single ball bearing

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

Small plastic

Color

Grey

Description

Pressed steel swivel fork , zinc-plated double ball race , sealed in the swviel head, gery polypropylene wheel centre, Shore A 85, gery thermoplastic rubber tread, rollen bearing and single ball bearing, Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

Applicable Terrain
