Industrial Grey Thermoplastic Rubber Castors Swivel Company

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1S80D32DTEBA	80x32	105x80	80x60	11x9	36	100	90
07P1S80D32DTERX	80x32	105x80	80x60	11x9	36	100	90
07P1S100D32DTEBA	100x32	105x80	80x60	11x9	36	125	100
07P1S100D32DTERX	100x32	105x80	80x60	11x9	36	125	100
07P1S125D40DTEBA	125x40	105x80	80x60	11x9	40	155	150
07P1S125D40DTERX	125x40	105x80	80x60	11x9	40	155	150

Castor Information

Wheel Tread Material

Thermoplastic rubber

Wheel Centre Material

Polypropylene

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Single ball bearing

Temperature Range

-20 to +60°C

Hardness of Tread

65° Shore A

Threadguard

Small plastic

Color

Grey

Description

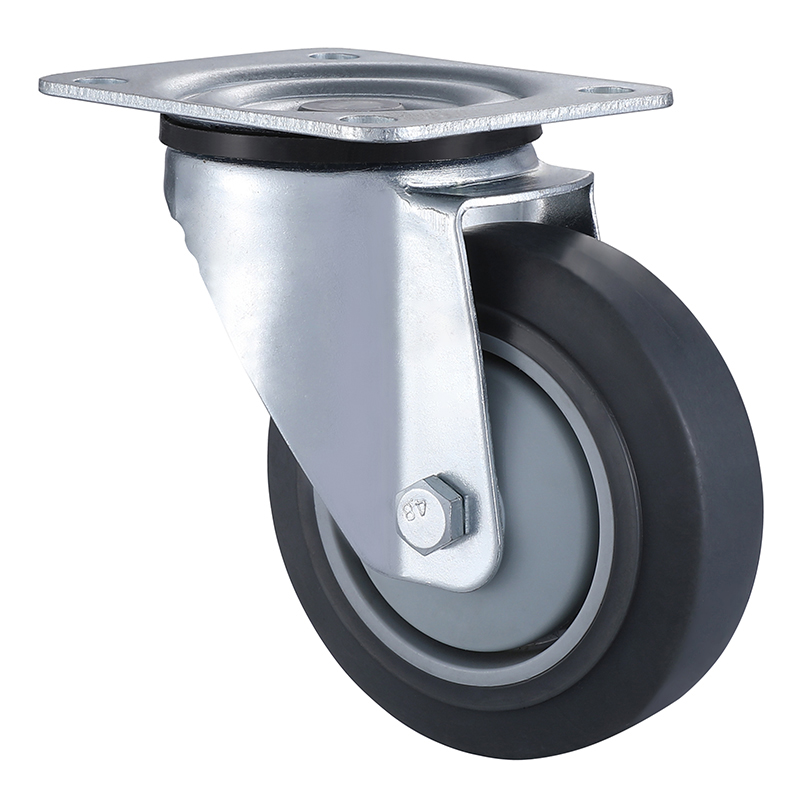

Pressed steel swivel fork , zinc-plated double ball race , sealed in the swviel head, gery polypropylene wheel centre, Shore A 65, gery thermoplastic rubber tread, roller bearing and single ball bearing, These industrial castors are durable and designed for use in the most demanding environments.
