Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 07P1S100D36DSTBA |  | 100x36 | 105x80 | 80x60 | 11x9 | 36 | 125 | 130 |
| 07P1S100D36DSTRX |  | |||||||
| 07P1S125D36DSTBA | | 125x36 | 105x80 | 80x60 | 11x9 | 40 | 155 | 160 |
| 07P1S125D36DSTRX | |
Castor Information
Wheel Tread Material
Polypropylene sandwich
Wheel Centre Material
Polypropylene
Castor Housing
Swivel
Mounting Type
Top Plate
Castor Bearing
Single ball bearing
Temperature Range
-20 to +60°C
Hardness of Tread
75° Shore A
Threadguard
Small plastic
Color
Grey
Description

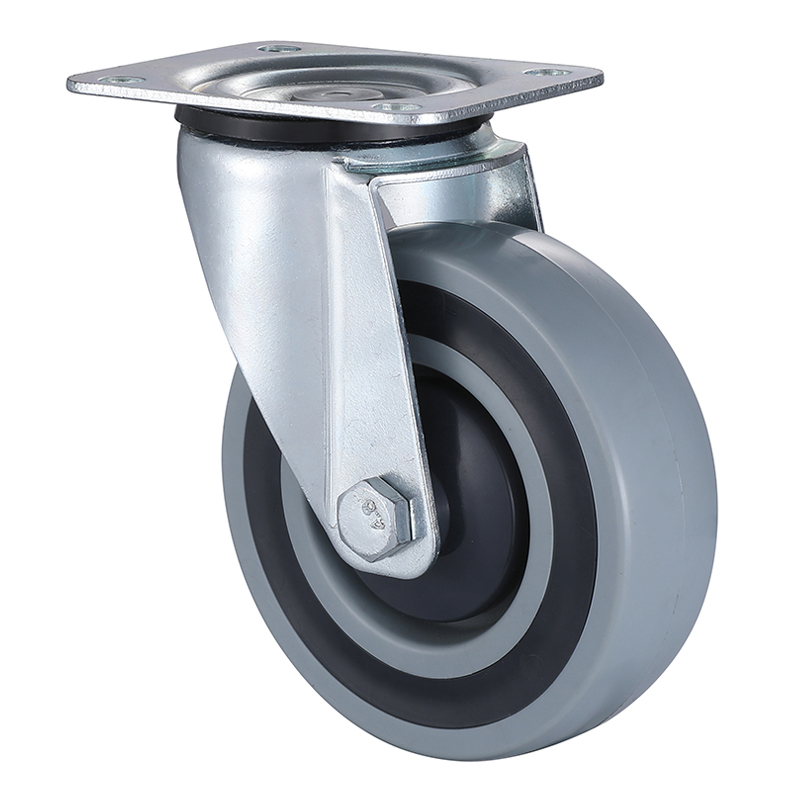

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Grey polypropylene wheel tread, grey thermoplastic rubber and grey polypropylene wheel centre, offers a choice of needle roller bearings and single ball bearings, Suitable for any terrain, Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Applicable Terrain
Tile Floor
Resin Cement Floor
