Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 07P1S100E38JUADX |  | 100x38 | 105x80 | 80x60 | 11x9 | 36 | 125 | 180 |
| 07P1S125E38JUADX | | 125x38 | 105x80 | 80x60 | 11x9 | 40 | 155 | 200 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Aluminium
Castor Housing
Swivel
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
94° Shore A
Threadguard
None
Color
Yellow
Description

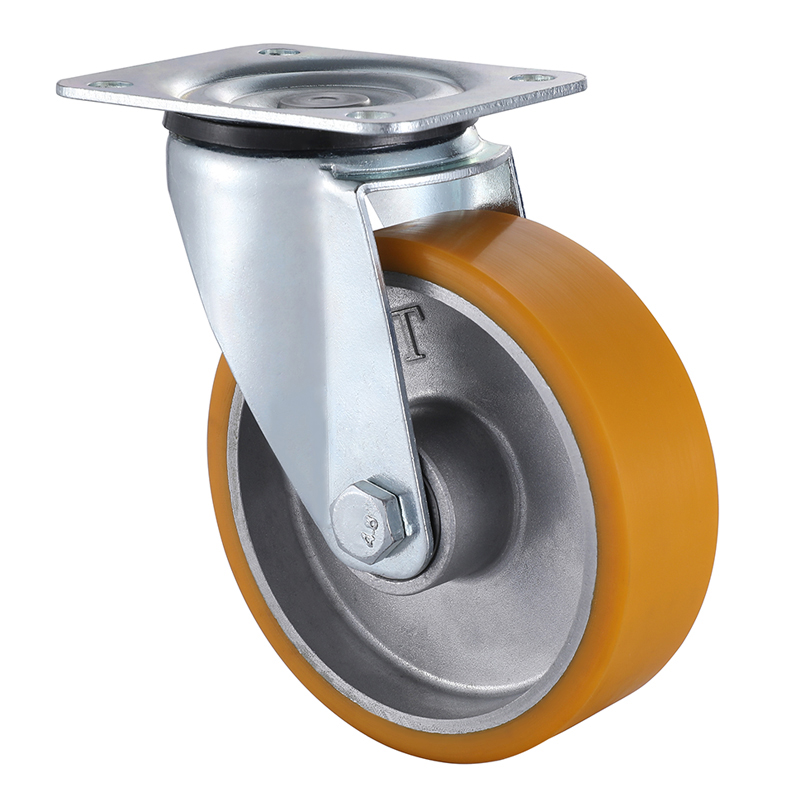

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 94, yellow polyurethane wheel tread, casting Aluminium wheel centre, diameter 100mm and 125mm, load capacity 180kg to 200kg, Suitable for any terrain. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Applicable Terrain
Tile Floor
Resin Cement Floor
