Hight Quality Industrial Polyurethane Swivel Castors Factory Direct Sales

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Bearing Type	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
06P1S100H40JUHDX		100x40	135x110	105x80	13.5x11	45	128	250
06P1S125H40JUHDX		125x40	135x110	105x80	13.5x11	48	155	300

Castor
Number

Bearing Type

Wheel Diameter & Width of Tread

( mm )

Size of Plate

( mm )

Plate Hole Center

( mm )

Plate Hole

( mm )

Offset

( mm )

Overall Height

( mm )

Load Capacity

( kg 4km/h )

06P1S100H40JUHDX

100x40

135x110

105x80

13.5x11

128

250

06P1S125H40JUHDX

125x40

135x110

105x80

13.5x11

155

300

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

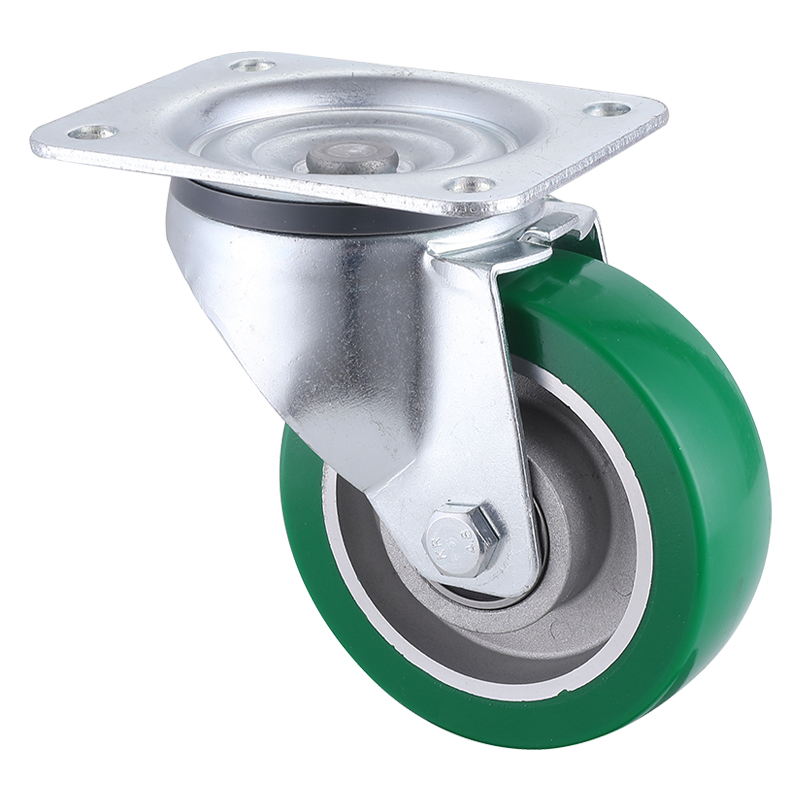

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 92+3, green elastic polyurethane wheel tread, casting aluminium wheel centre, diameter 100mm to 125mm, load capacity 250kg to 300kg. Suitable for any terrain. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

Applicable Terrain
