Hight Quality Industrial Black Elastic Rubber Swivel Castors Vendor

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1S80C38JEADX	80x38	105x80	80x60	11x9	40	108	105
09P1S100C40JEADX	100x40	105x80	80x60	11x9	40	132	170
09P1S125C40JEADX	125x40	105x80	80x60	11x9	40	155	220
09P1S150C50JEADX	150x50	135x110	105x80	13.5x11	52	195	280
09P1S160C50JEADX	160x50	135x110	105x80	13.5x11	52	200	300
09P1S200C50JEADX	200x50	135x110	105x80	13.5x11	54	245	400

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Aluminium

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Black

Description

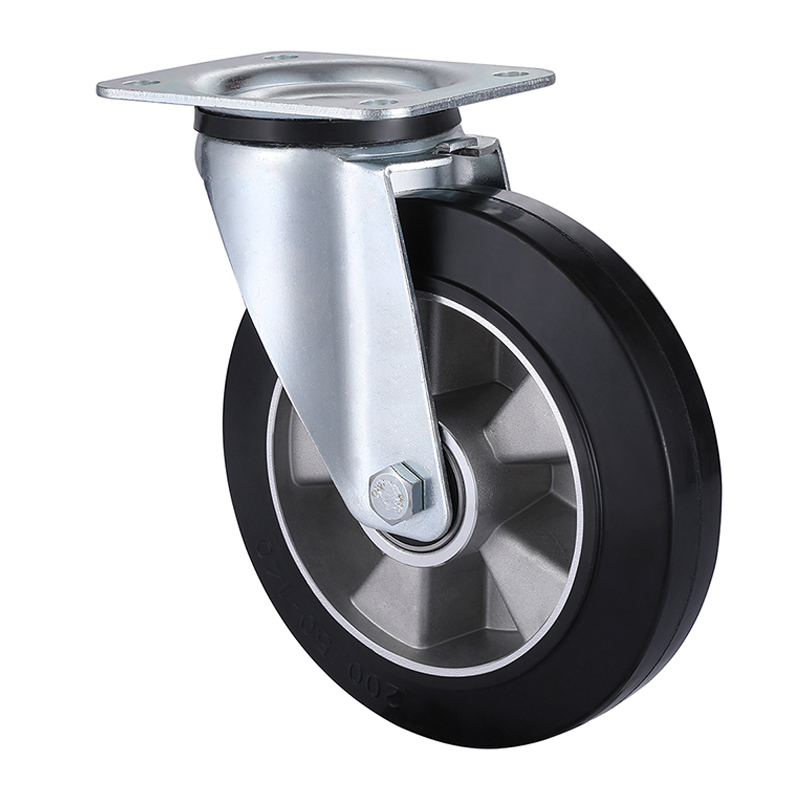

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, black elastic rubber wheel tread, casting aluminium wheel centre, double ball bearings, diameter 80mm to 200mm, load capacity 105kg to 400kg, These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain
