Excellent Quality Industrial Polyurethane Swivel Castors for China

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Bearing Type	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
06P1S100D40DUMRX		100x40	135x110	105x80	13.5x11	45	128	300
06P1S125D40DUMRX		125x40	135x110	105x80	13.5x11	48	155	350

Castor
Number

Bearing Type

Wheel Diameter & Width of Tread

( mm )

Size of Plate

( mm )

Plate Hole Center

( mm )

Plate Hole

( mm )

Offset

( mm )

Overall Height

( mm )

Load Capacity

( kg 4km/h )

06P1S100D40DUMRX

100x40

135x110

105x80

13.5x11

128

300

06P1S125D40DUMRX

125x40

135x110

105x80

13.5x11

155

350

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Roller bearing

Temperature Range

-20 to +60°C

Hardness of Tread

92°+3 Shore A

Threadguard

None

Color

Grey

Description

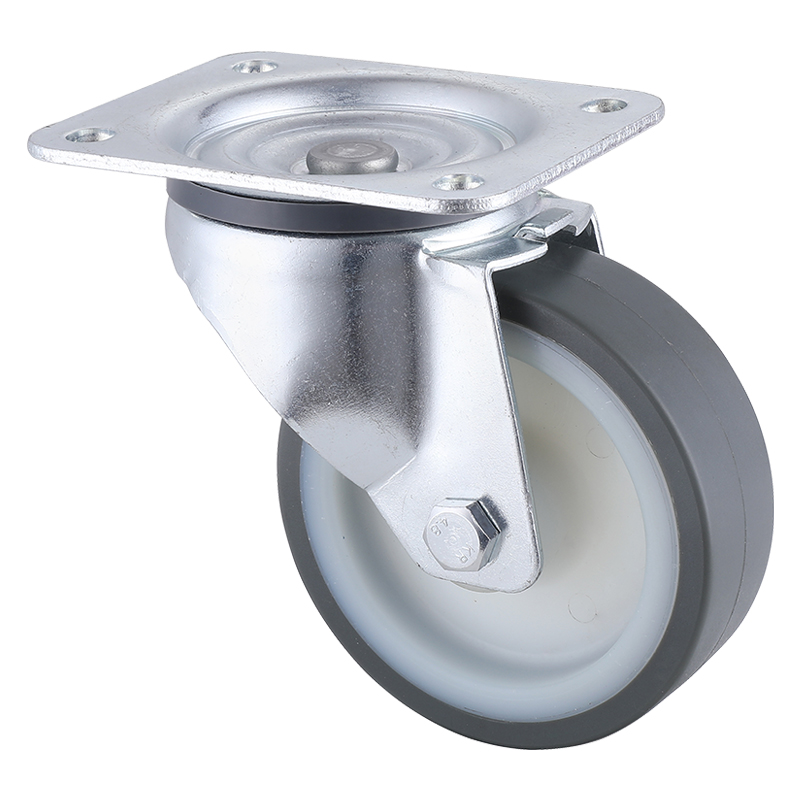

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 92+3, grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 100mm and 125mm, load capacity 300kg to 350kg, These castors are from the leading castor manufacturers in the industry, factory direct sales, no middleman, can get these castors at the best price, don't hesitate to contact our sales manager immediately.
