Best Industrial Grey Thermoplasitc Polyurethane Swivel Castors from Taishan Manufacturer

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1S80D34BUPRX	80x34	105x80	80x60	11x9	36	100	120
07P1S80D34BUPBA	80x34	105x80	80x60	11x9	36	100	120
07P1S100D34BUPRX	100x34	105x80	80x60	11x9	36	125	160
07P1S100D34BUPBA	100x34	105x80	80x60	11x9	36	125	160
07P1S125D36BUPRX	125x36	105x80	80x60	11x9	40	155	200
07P1S125D36BUPBA	125x36	105x80	80x60	11x9	40	155	200
07P1S160D40BUPRX	160x40	135x110	105x80	13.5x11	52	190	300
07P1S160D40BUPDA	160x40	135x110	105x80	13.5x11	52	190	300
07P1S200D50BUPRX	200x50	135x110	105x80	13.5x11	54	235	300
07P1S200D50BUPDA	200x50	135x110	105x80	13.5x11	54	235	300

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Single ball bearing

Temperature Range

-40 to +80°C

Hardness of Tread

92°+3 Shore A

Threadguard

None

Color

Grey

Description

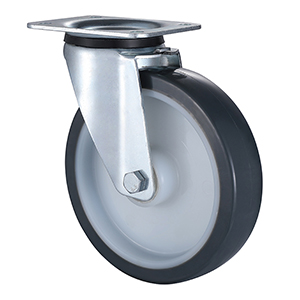

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 92, Grey thermoplastic polyurethane wheel tread, white nylon wheel centre, Suitable for all terrain, These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain
