Top Industrial Blue Elastic Rubber Swivel Castors Export

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1S80A35CEPRX	80x36	105x80	80x60	11x9	40	108	100
09P1S100A36CEPRX	100x36	105x80	80x60	11x9	40	132	150
09P1S125A36CEPRX	125x36	105x80	80x60	11x9	40	155	200
09P1S160A50CEPDX	160x50	135x110	105x80	13.5x11	52	200	300
09P1S200A50CEPDX	200x50	135x110	105x80	13.5x11	54	245	400

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Polyamide

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Roller bearing

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Blue

Description

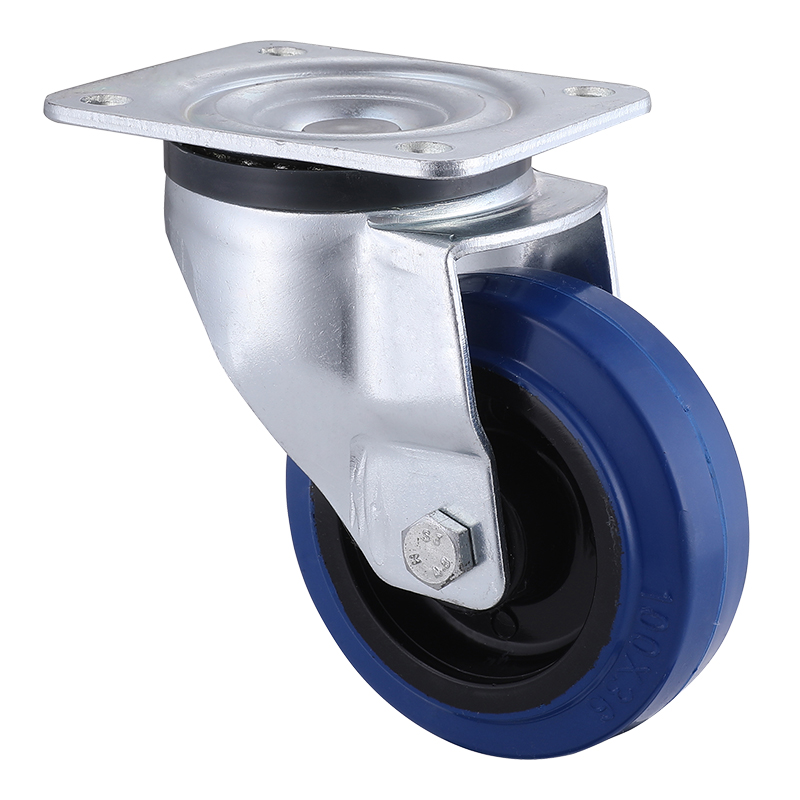

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, blue elastic rubber wheel tread, black nylon wheel centre, roller bearings and Douuble ball bearings , diameter 80mm to 200mm, load capacity 100kg to 400kg, Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping,

Applicable Terrain
