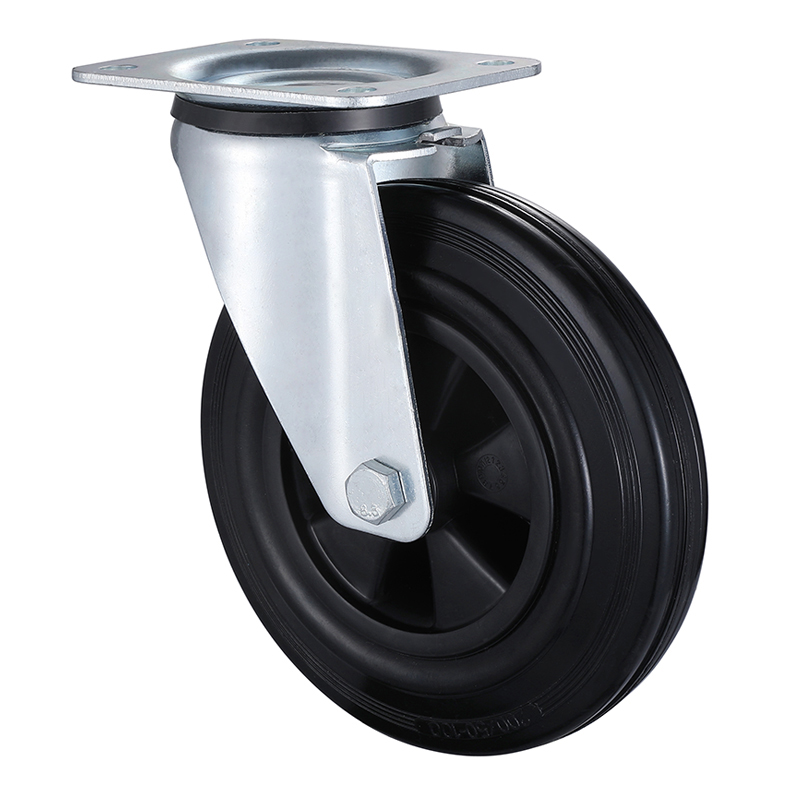

Taishan Manufacturer Industrial Black Solid Rubber Swivel Castors

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1S80C30CBPRX	80x30	105x80	80x60	11x9	36	100	50
07P1S100C30CBPRX	100x30	105x80	80x60	11x9	36	125	70
07P1S125C37.5CBPRX	125x37.5	105x80	80x60	11x9	36	155	100
07P1S160C40CBPRX	160x40	135x110	105x80	13.5x11	52	190	135
07P1S200C50CBPRX	200x50	135x110	105x80	13.5x11	54	235	205
07P1S250C60CBPRX	250x60	135x110	105x80	13.5x11	66	290	295

Castor Information

Wheel Tread Material

Solid rubber

Wheel Centre Material

Polypropylene

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Roller bearing

Temperature Range

-20 to +60°C

Hardness of Tread

85°+3 Shore A

Threadguard

None

Color

Black

Description

Pressed steel swivel fork , zinc-plated double ball race , sealed in the swviel head, black polypropylene wheel centre, Shore A 85+3, black solid rubber tread, Roller bearing, These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain
