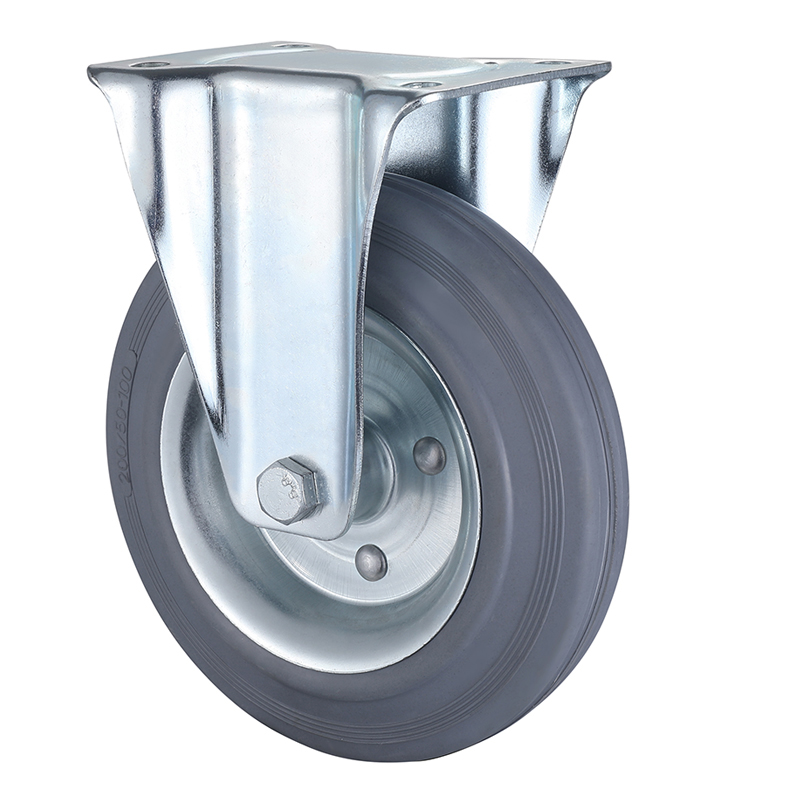

Top Industrial Grey Solid Rubber Castors Fixed Bulk

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1F80D30JGMRX	80x30	102x87	80x60	11x9	100	50
07P1F100D30JGMRX	100x30	102x87	80x60	11x9	125	70
07P1F125D37.5JGMRX	125x37.5	102x87	80x60	11x9	155	100
07P1F160D40JGMRX	160x40	135x114	105x80	13.5x11	190	135
07P1F200D50JGMRX	200x50	135x114	105x80	13.5x11	235	205
07P1F250D60JGMRX	250x60	135x114	105x80	13.5x11	290	295

Castor Information

Wheel Tread Material

Solid rubber

Wheel Centre Material

Pressed steel

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Roller bearing

Temperature Range

-20 to +60°C

Hardness of Tread

85°+3 Shore A

Threadguard

None

Color

Grey

Description

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, pressed steel, Shore A 85+3, grey solid rubber wheel tread, roller bearing, Suitable for any terrain, These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain
