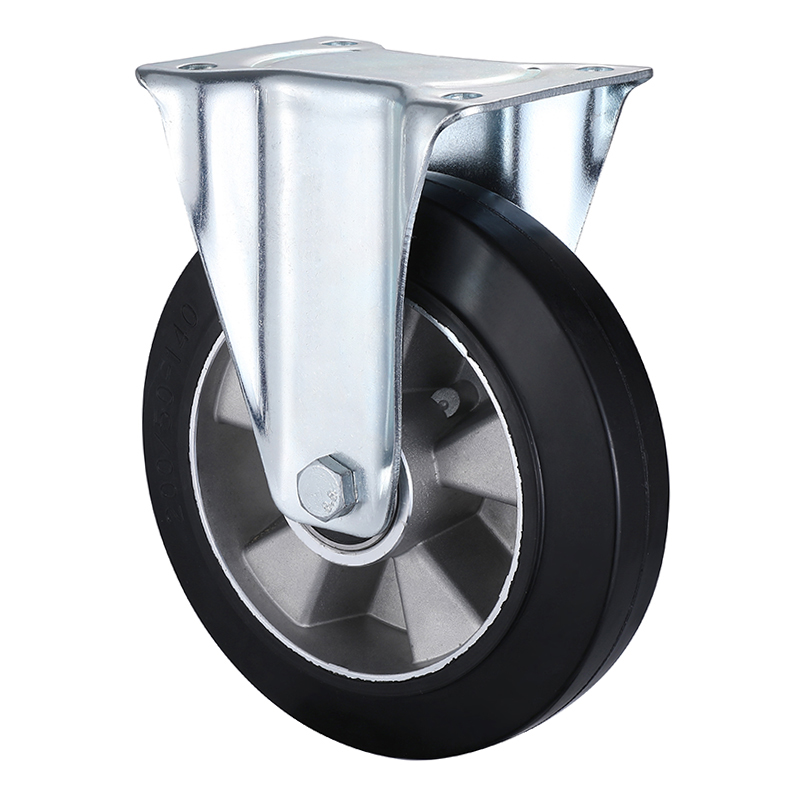

Top Industrial Black Elastic Rubber Fixed Castors Taishan Factory

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1F80C38JEADX	80x38	103x90	80x60	11x9	100	105
09P1F100C40JEADX	100x40	103x90	80x60	11x9	132	170
09P1F125C40JEADX	125x40	103x90	80x60	11x9	155	220
09P1F150C50JEADX	150x50	135x114	105x80	13.5x11	195	280
09P1F160C50JEADX	160x50	135x114	105x80	13.5x11	200	300
09P1F200C50JEADX	200x50	135x114	105x80	13.5x11	245	400

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Aluminium

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Black

Description

Pressed steel swivel fork, Integrated die casting moulding, no swivel, Shore A 68+5, blue elastic rubber wheel tread, aluminium wheel centre, double ball bearings, diameter 80mm to 250mm, load capacity 105kg to 400kg, Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping, non-marking.
