Top Industrial Green Elastic Polyurethane Rigid Castor Wheels Distributor

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1F80H38JUHDX	80x38	103x90	80x60	11x9	108	200
09P1F100H40JUHDX	100x40	103x90	80x60	11x9	132	250
09P1F125H40JUHDX	125x40	103x90	80x60	11x9	155	300
09P1F150H50JUHDX	150x50	135x114	105x80	13.5x11	195	400
09P1F160H50JUHDX	160x50	135x114	105x80	13.5x11	200	440
09P1F200H50JUHDX	200x50	135x114	105x80	13.5x11	245	500

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

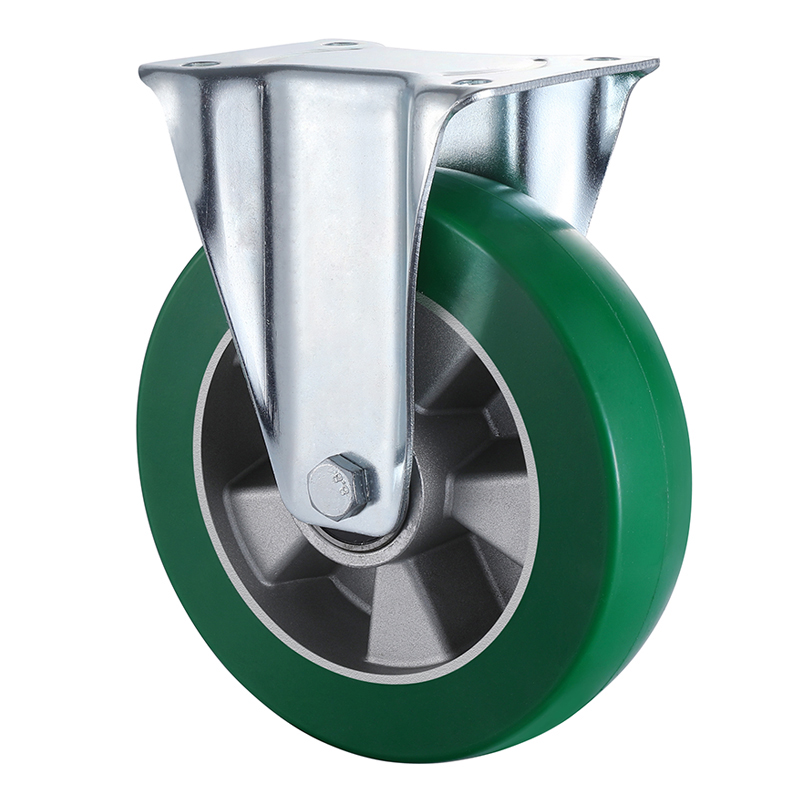

Pressed steel fixed fork, Shore A 92+3, green elastic polyurethane wheel tread, aluminium wheel centre, diameter 80mm to 200mm, load capacity 200kg to 500kg. Applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.

Applicable Terrain
