Top Industrial Blue Elastic Rubber Rigid Castors Distributor

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1F80A35CEPRX	80x35	103x90	80x60	11x9	108	100
09P1F100A36CEPRX	100x36	103x90	80x60	11x9	132	150
09P1F125A36CEPRX	125x36	103x90	80x60	11x9	155	200
09P1F160A50CEPDX	160x50	135x114	105x80	13.5x11	200	300
09P1F200A50CEPDX	200x50	135x114	105x80	13.5x11	245	400

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Polyamide

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Roller bearing

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Blue

Description

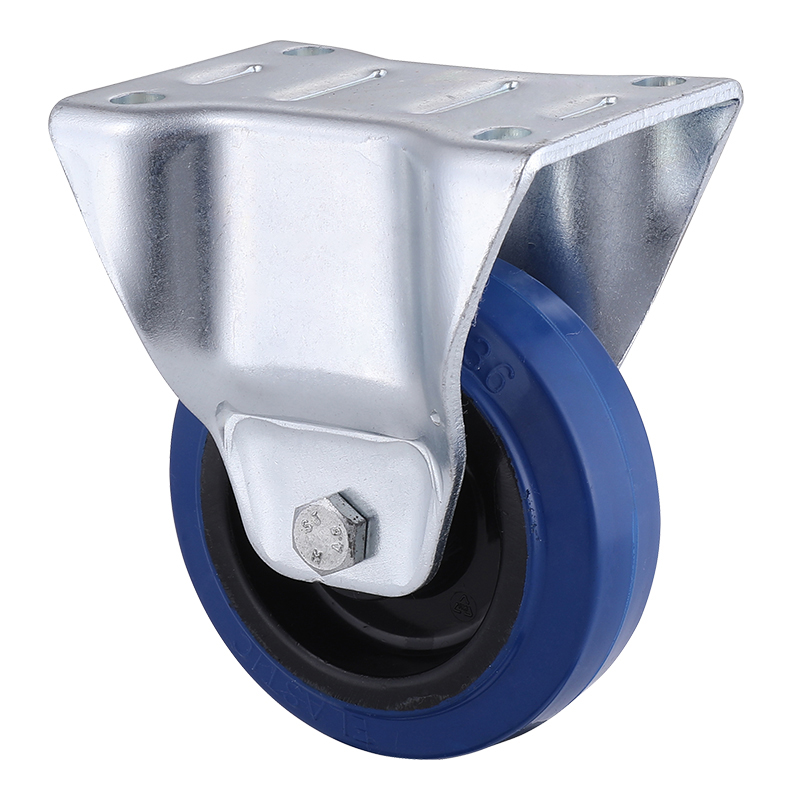

Pressed steel swivel fork, Integrated die casting moulding, no swivel, Shore A 68+5, blue elastic rubber wheel tread, black nylon wheel centre, roller bearings and double ball bearings, diameter 80mm to 200mm, load capacity 100kg to 400kg, Our quality is all about creating an easier working life for caster users.

Applicable Terrain
