Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|
07P1F100E38JUADX | 100x38 | 105x80 | 80x60 | 11x9 | 125 | 180 | |
07P1F125E38JUADX | 125x38 | 105x80 | 80x60 | 11x9 | 155 | 200 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Aluminium
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
94° Shore A
Threadguard
None
Color
Yellow
Description

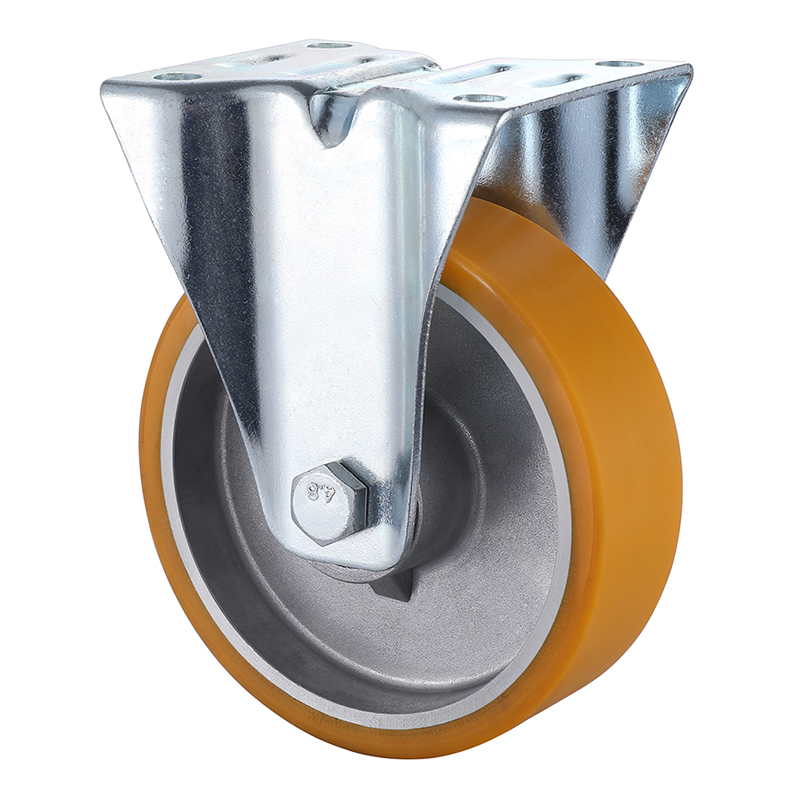

Pressed steel fixed fork, Shore A 94, yellow polyurethane wheel tread, casting aluminium wheel centre, diameter 100mm and 125mm, load capacity 180kg to 200kg. These castors are made by Taishan to provide you with the highest quality and reliability. We are also proud to offer a variety of other industrial castor solutions, so if you need help or can't find what you need, please contact us.
Applicable Terrain
Tile Floor
Resin Cement Floor
