Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|
09P1F80E38JUHDX | 80x38 | 103x90 | 80x60 | 11x9 | 108 | 250 | |
09P1F100E38JUADX | 100x38 | 103x90 | 80x60 | 11x9 | 132 | 300 | |
09P1F125E38JUADX | 125x38 | 103x90 | 80x60 | 11x9 | 155 | 350 | |
09P1F150E50JUADX | 150x50 | 135x114 | 105x80 | 13.5x11 | 195 | 500 | |
09P1F160E50JUADX | 160x50 | 135x114 | 105x80 | 13.5x11 | 200 | 500 | |
09P1F200E50JUADX | 200x50 | 135x114 | 105x80 | 13.5x11 | 245 | 500 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Aluminium
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
94° Shore A
Threadguard
None
Color
Yellow
Description

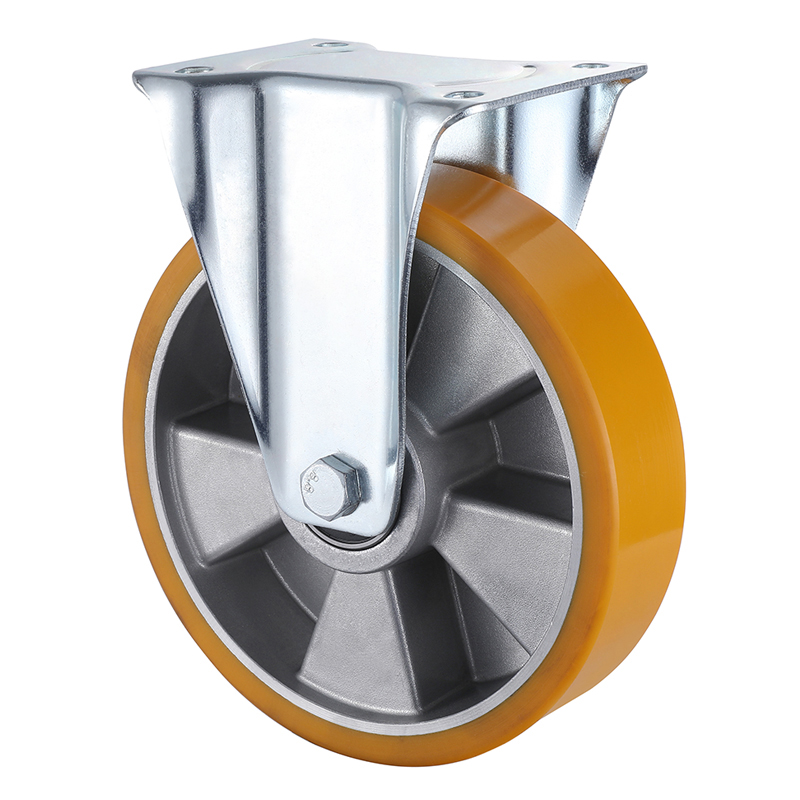

Pressed steel Fixed fork, zinc-plated Shore A 94, yellow polyurethane wheel tread, aluminium wheel centre, diameter 80mm to 200mm, load capacity 250kg to 500kg, Applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.
Applicable Terrain
Tile Floor
Resin Cement Floor
