Excellent Quality Industrial Polyurethane Fixed Castors Bulk

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1F80D38BUMRX	80x38	103x90	80x60	11x9	108	180
09P1F100D40BUMRX	100x40	103x90	80x60	11x9	132	300
09P1F125D40BUMRX	125x40	103x90	80x60	11x9	155	350
09P1F160D45BUMRX	160x45	135x114	105x80	13.5x11	200	500
09P1F200D50BUMRX	200x50	135x114	105x80	13.5x11	245	500

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Roller bearing

Temperature Range

-40 to +80°C

Hardness of Tread

92°+3 Shore A

Threadguard

None

Color

Grey

Description

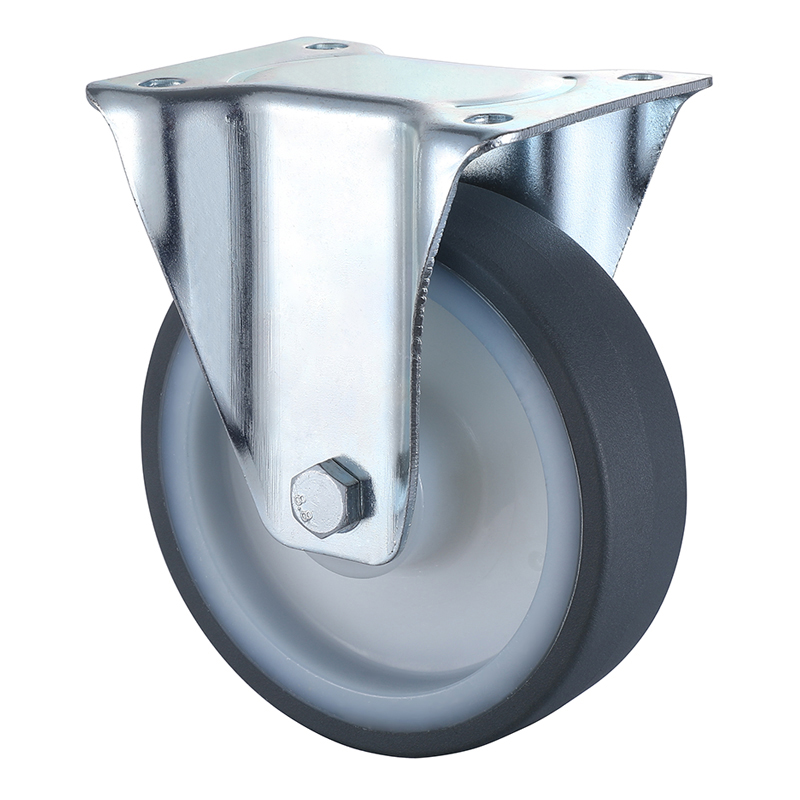

Pressed steel fixed fork, Shore A 92+3, Grey polyurethane wheel tread, white Nylon centre, diameter 80mm to 200mm, load capacity 180kg to 500kg. These castors are from the leading castor manufacturers in the industry, factory direct sales, no middleman, can get these castors at the best price, don't hesitate to contact our sales manager immediately.

Applicable Terrain
