Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|
06P1F100C40JEADX | 100x40 | 135x114 | 105x80 | 13.5x11 | 128 | 170 | |
06P1F125C40JEADX | 125x40 | 135x114 | 105x80 | 13.5x11 | 155 | 220 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Aluminium
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Black
Description

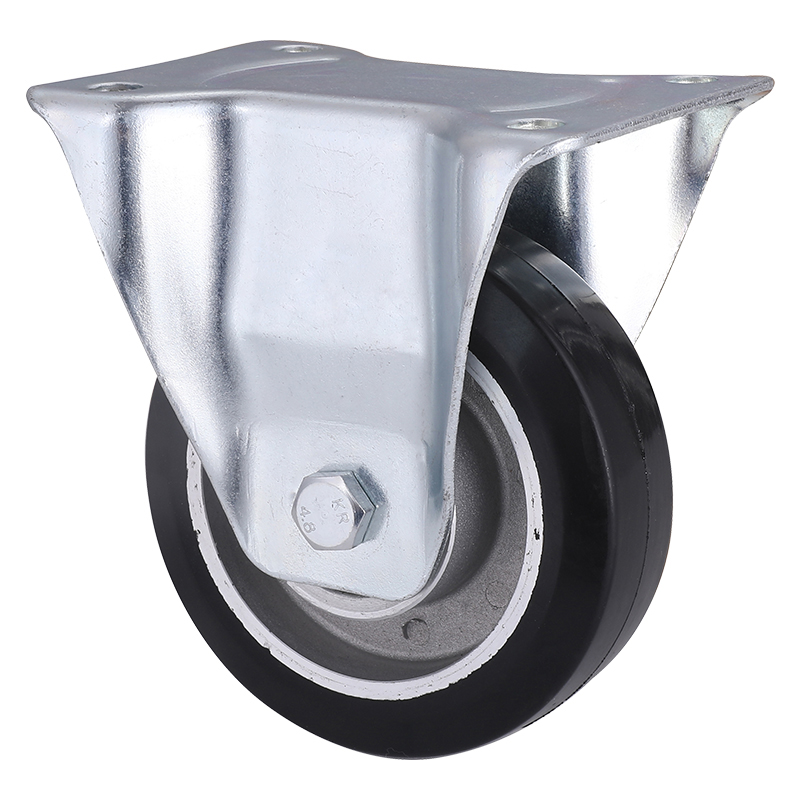

Pressed steel swivel fork, Integrated die casting moulding, no swivel, Shore A 68+5, blue elastic rubber wheel tread, aluminium wheel centre, double ball bearings, diameter 100mm to 125mm, load capacity 170kg to 220kg, Applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
