Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|
| 07P1F125C37.5JEHRX |  | 125x37.5 | 102x87 | 80x60 | 11x9 | 155 | 120 |
| 07P1F160C40JEHRX | | 160x40 | 135x114 | 105x80 | 13.5x11 | 190 | 225 |
| 07P1F200C50JEHRX | | 200x50 | 135x114 | 105x80 | 13.5x11 | 235 | 350 |
| 07P1F250C60JEHRX | | 250x60 | 135x114 | 105x80 | 13.5x11 | 290 | 400 |
| 08P1F260C85JEHRX | | 260x85 | 230x130 | 190x75 | 14.5x14.5 | 295 | 400 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Pressed steel
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Roller bearing
Temperature Range
-20 to +80°C
Hardness of Tread
55°+5 Shore A
Threadguard
None
Color
Black
Description

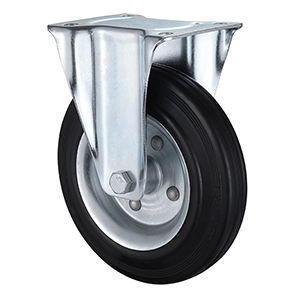

Housing made of pressed steel,blue passivated ,Black Super elastic rubber tyre , pressed steel wheel centre, roller bearings, diameter 125mm to 260mm, load capacity 120kg to 400kg, These industrial castors are durable and designed for use in the most demanding environments.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
