Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|
| 07P1F80D34BUPRX |  | 80x34 | 105x80 | 80x60 | 11x9 | 100 | 120 |
| 07P1F80D34BUPBA |  | ||||||
| 07P1F100D34BUPRX | | 100x36 | 105x80 | 80x60 | 11x9 | 125 | 160 |
| 07P1F100D34BUPBA | | ||||||
| 07P1F125D36BUPRX | | 125x40 | 105x80 | 80x60 | 11x9 | 155 | 200 |
| 07P1F125D36BUPBA | | ||||||
| 07P1F160D40BUPRX | | 160x40 | 135x110 | 105x80 | 13.5x11 | 190 | 300 |
| 07P1F160D40BUPDA | | ||||||
| 07P1F200D50BUPRX | | 200x50 | 135x110 | 105x80 | 13.5x11 | 235 | 300 |
| 07P1F200D50BUPDA | |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Polyamide
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Single ball bearing
Temperature Range
-40 to +80°C
Hardness of Tread
92°+3 Shore A
Threadguard
Small plastic
Color
Grey
Description

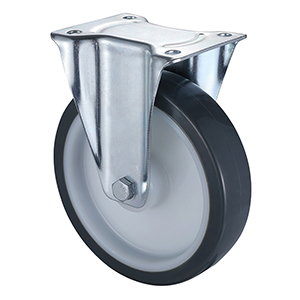

Pressed steel fixed fork, zinc-plated , Shore A 92+3, Grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 80mm to 200mm, load capacity 120kg to 300kg, These industrial castors are durable and designed for use in the most demanding environments.
Applicable Terrain
Tile Floor
Resin Cement Floor
