Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|
06P1F100D40DUMRX | 100x40 | 135x114 | 105x80 | 13.5x11 | 128 | 300 | |
06P1F125D40DUMRX | 125x40 | 135x114 | 105x80 | 13.5x11 | 155 | 350 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Polyamide
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Roller bearing
Temperature Range
-40 to +80°C
Hardness of Tread
92°+3 Shore A
Threadguard
None
Color
Grey
Description

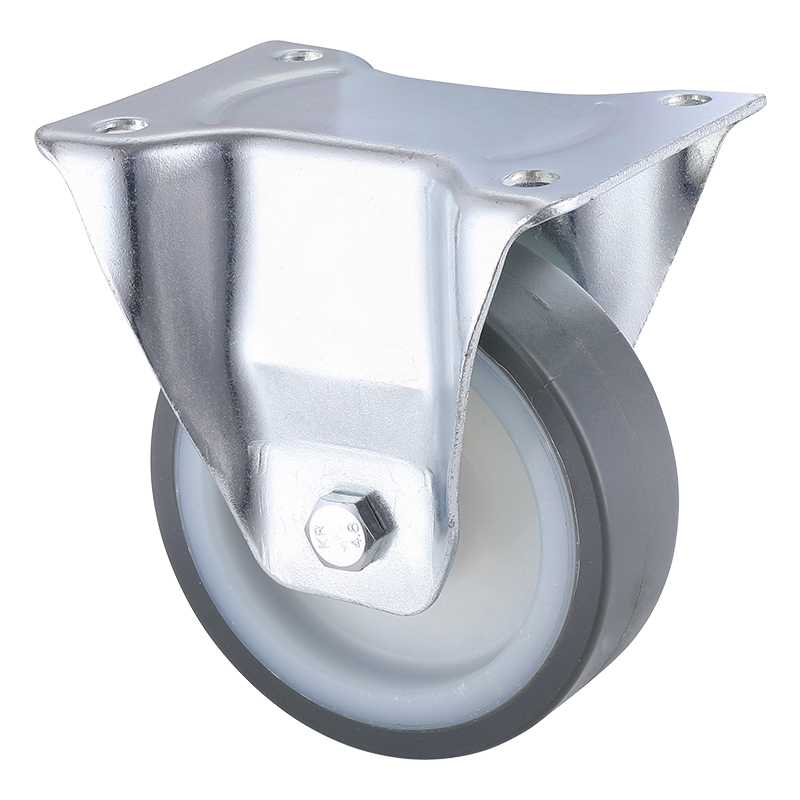

Pressed steel fixed fork, zinc-plated , Can be rotated in parallel at any angle, Shore A 92+3, grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 100mm and 125mm, load capacity 300kg to 350kg, Applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.
Applicable Terrain
Tile Floor
Resin Cement Floor
