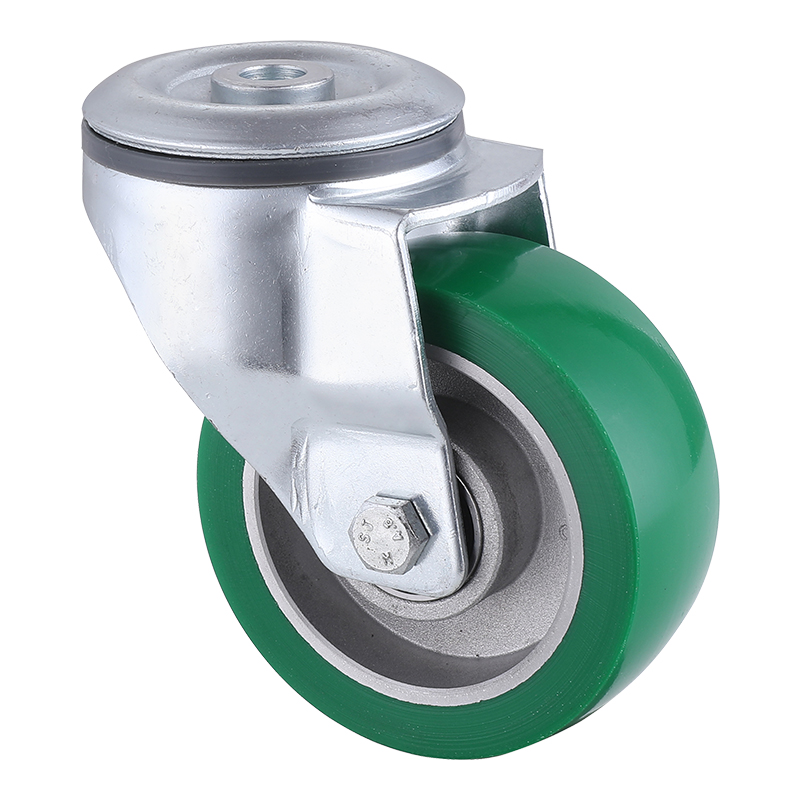

Top Industrial Green Elastic Polyurethane Bolt Hole Castor Wheels Wholesale

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Offset ( mm )	Centre Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09H1S80H38JUHDX	80x38	40	Φ13	107	200
09H1S100H40JUHDX	100x40	40	Φ13	131	250
09H1S125H40JUHDX	125x40	40	Φ13	154	300

Castor
Number

Bearing Type

Wheel Diameter & Width of Tread

( mm )

Offset

( mm )

Centre Hole

( mm )

Overall Height

( mm )

Load Capacity

( kg 4km/h )

09H1S80H38JUHDX

80x38

Φ13

107

200

09H1S100H40JUHDX

100x40

Φ13

131

250

09H1S125H40JUHDX

125x40

Φ13

154

300

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Bolt Hole

Mounting Type

Bolt Hole

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 92+3, green elastic polyurethane wheel tread, aluminium wheel centre, diameter 80mm to 125mm, load capacity 200kg to 300kg. These castors are made by Taishan to provide you with the highest quality and reliability. We are also proud to offer a variety of other industrial castor solutions, so if you need help or can't find what you need, please contact us.

Applicable Terrain
