Top Industrial Black Elastic Rubber Bolt Hole Castors Dealer

Industrial Bolt Hole Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Top Industrial Black Elastic Rubber Bolt Hole Castors Dealer

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number
wheel bearing

Bearing Type

size-diameter.jpg size-tread-width.jpg

Wheel Diameter & Width of Tread

( mm )


Offset

( mm )


Centre Hole

( mm )


Overall Height

( mm )


Load Capacity

( kg 4km/h )

09H1S80C38JEADXdoubles ball bearing80x3840Φ13107105
09H1S100C40JEADXdoubles ball bearing100x4040Φ13131170
09H1S125C40JEADXdoubles ball bearing125x4040Φ13154220

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Aluminium

Castor Housing

Bolt Hole

Mounting Type

Bolt Hole

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Black

Description

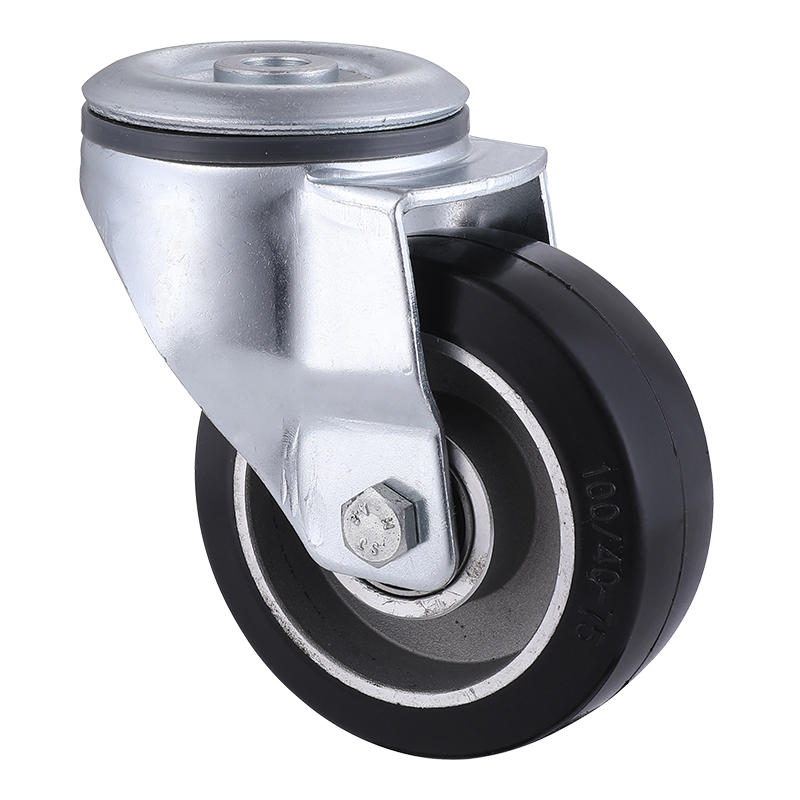

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, black elastic rubber wheel tread,  aluminium wheel centre, double ball bearings, diameter 80mm to 125mm, load capacity 105kg to 220kg, Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor

Not Paved

Not Paved

Expanded Metal

Expanded Metal

Floor With Chips

Floor With Chips
