Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Offset ( mm ) | Centre Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|
| 07H1S80B34BPPPX |  | 80x34 | 36 | ф13 | 99 | 80 |
| 07H1S80B34BPPRX |  | |||||
| 07H1S100B36BPPPX | | 100x36 | 36 | ф13 | 124 | 120 |
| 07H1S100B36BPPRX | | |||||
| 07H1S125B40BPPPX | | 125x40 | 36 | ф13 | 154 | 150 |
| 07H1S125B40BPPRX | | |||||
| 07H1S160B40BPPPX | | 160x40 | 52 | ф16.8 | 185 | 250 |
| 07H1S160B40BPPRX | | |||||
| 07H1S200B46BPPPX | | 200x46 | 54 | ф16.8 | 230 | 300 |
| 07H1S200B46BPPRX | |
Castor Information
Wheel Tread Material
Polyopylene
Wheel Centre Material
Polypropylene
Castor Housing
Bolt Hole
Mounting Type
Bolt Hole
Castor Bearing
Plain bore
Temperature Range
-20 to +60°C
Hardness of Tread
no
Threadguard
None
Color
White
Description

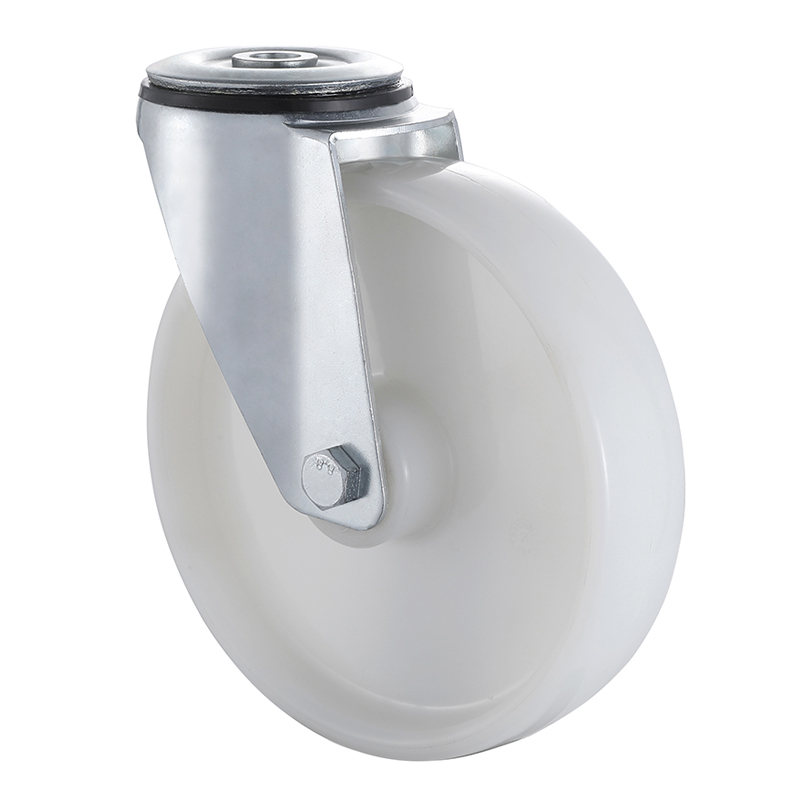

Pressed steel swivel fork zinc-plated ,double ball race, sealed in the swviel head, white polypropylene wheel, offers a choice of needle roller bearings and through bearings, Suitable for any terrain, Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Applicable Terrain
Tile Floor
Resin Cement Floor
