Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Offset ( mm ) | Centre Hole ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|
07H1S80A36CEPBA | 80x36 | 36 | Φ13 | 99 | 100 | |
07H1S100A36CEPBA | 100x36 | 36 | Φ13 | 124 | 150 | |
07H1S125A38CEPBA | 125x38 | 36 | Φ13 | 154 | 210 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Polyamide
Castor Housing
Bolt Hole
Mounting Type
Bolt Hole
Castor Bearing
Single ball bearing
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
Small plastic
Color
Blue
Description

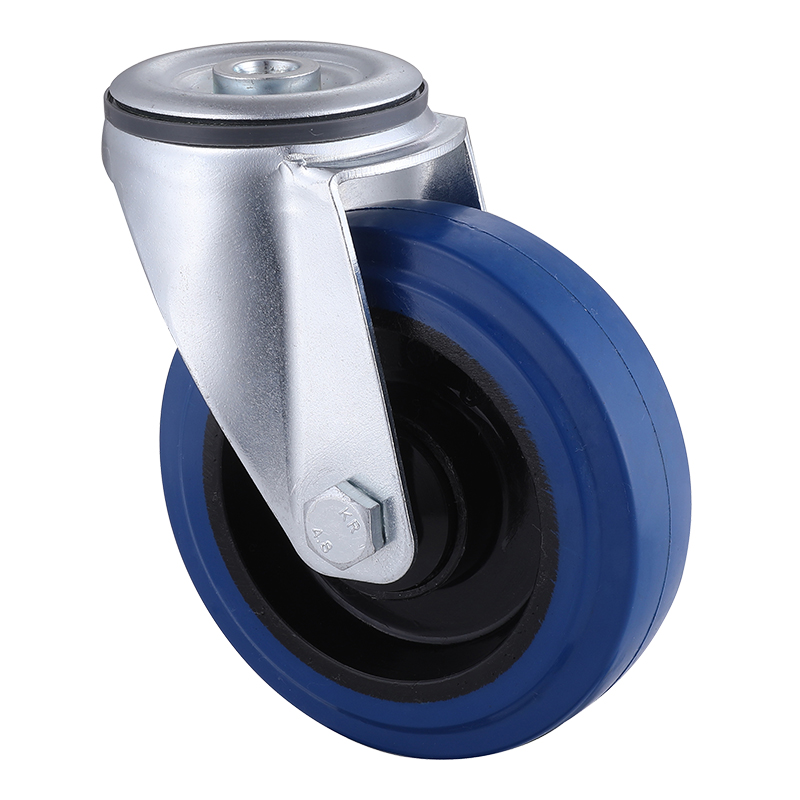

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, blue elastic rubber wheel tread, black nylon wheel centre, single ball bearing, diameter 80mm to 125mm, load capacity 100kg to 210kg, Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping,
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
