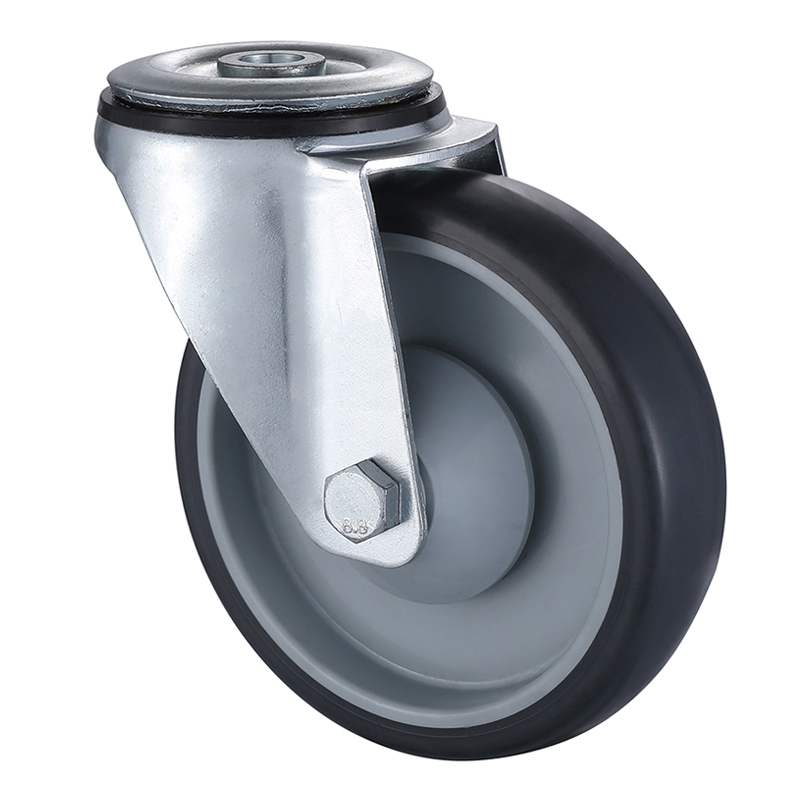

Industrial Grey Thermoplastic Rubber Castors Bolt Hole Manufacturer

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Offset ( mm )	Centre Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07H1S100D32DTRBA	100x32	36	Φ13	124	100
07H1S100D32DTRRX	100x32	36	Φ13	124	100
07H1S125D32DTRBA	125x32	36	Φ13	154	150
07H1S125D32DTRRX	125x32	36	Φ13	154	150
07H1S160D40DTRBA	160x40	52	Φ16.8	185	200
07H1S160D40DTRRX	160x40	52	Φ16.8	185	200
07H1S200D40DTRBA	200x40	54	Φ16.8	230	250
07H1S200D40DTRRX	200x40	54	Φ16.8	230	250

Castor Information

Wheel Tread Material

Thermoplastic rubber

Wheel Centre Material

Polypropylene

Castor Housing

Bolt Hole

Mounting Type

Bolt Hole

Castor Bearing

Single ball bearing

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

Small plastic

Color

Grey

Description

Pressed steel swivel fork , zinc-plated double ball race , sealed in the swviel head, gery polypropylene wheel centre, Shore A 85, gery thermoplastic rubber tread, rollen bearing and single ball bearing, These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain
