Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Offset ( mm ) |  Centre Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|
| 09H1S80E38JUHDX |  | 80x38 | 40 | Φ13 | 107 | 250 |
| 09H1S100E38JUADX | | 100x38 | 40 | Φ13 | 131 | 300 |
| 09H1S125E38JUADX | | 125x38 | 40 | Φ13 | 154 | 350 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Aluminium
Castor Housing
Bolt Hole
Mounting Type
Bolt Hole
Castor Bearing
Double ball bearings
Temperature Range
-40 to +80°C
Hardness of Tread
94° Shore A
Threadguard
None
Color
Yellow
Description

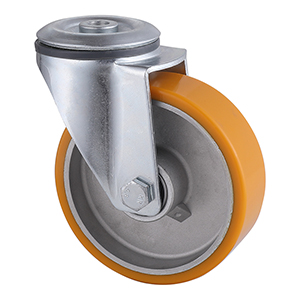

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 94, yellow polyurethane wheel tread, aluminium wheel centre, diameter 80mm to 125mm, load capacity 250kg to 350kg, These industrial castors are durable and designed for use in the most demanding environments.
Applicable Terrain
Tile Floor
Resin Cement Floor
