Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Offset ( mm ) | Centre Hole ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|
09H1S80A35CEPRX | 80x35 | 40 | Φ13 | 107 | 100 | |
09H1S100A36CEPRX | 100x36 | 40 | Φ13 | 131 | 150 | |
09H1S125A36CEPRX | 125x36 | 40 | Φ13 | 154 | 200 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Polyamide
Castor Housing
Bolt Hole
Mounting Type
Bolt Hole
Castor Bearing
Roller bearing
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Blue
Description

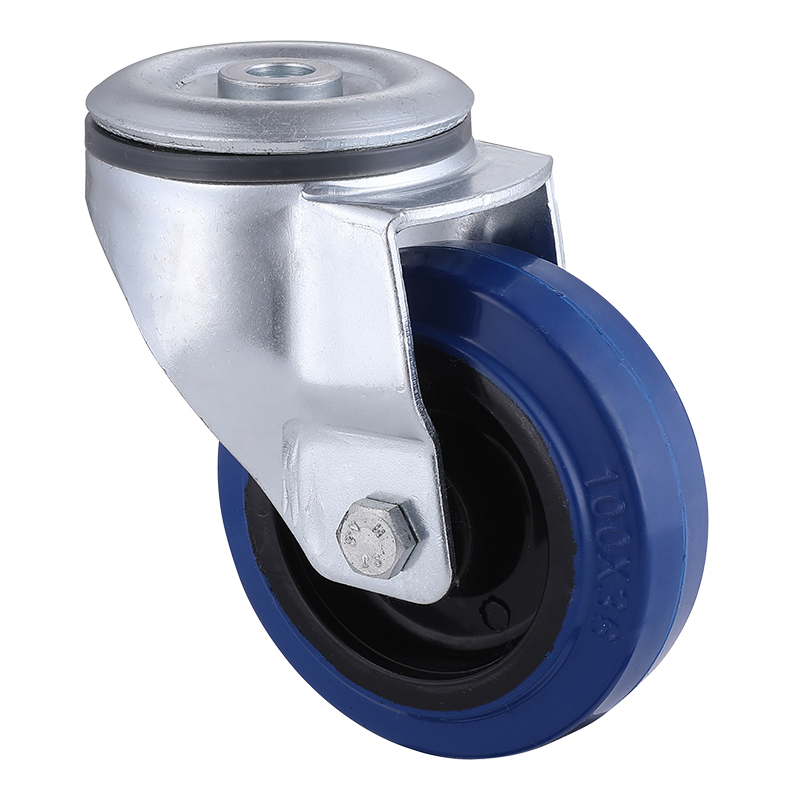

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, blue elastic rubber wheel tread, black nylon wheel centre, roller bearings, diameter 100mm to 125mm, load capacity 160kg to 200kg, These industrial castors are durable and designed for use in the most demanding environments.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
