Wheel Tread
Nylon
Temperature
-20 to +80°C
Standard
EN 12532
Hardness of Tread
no
Castor Description

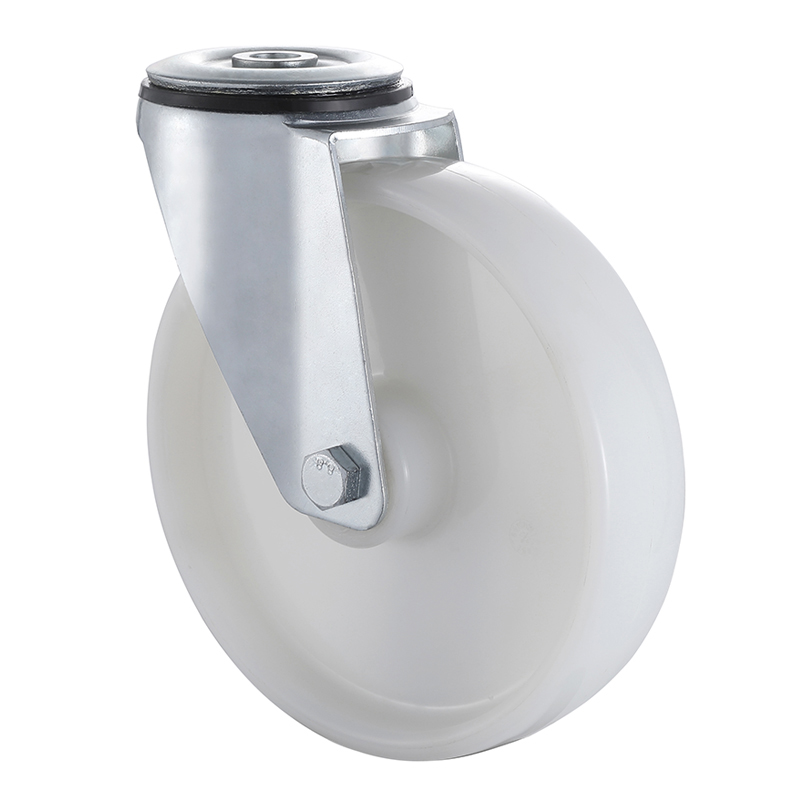

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, can be rotated freely in 360 degrees, white nylon wheel, diameter 80mm to 200mm, load capacity 150kg to 300kg, these castors are from the leading castor manufacturers in the industry, factory direct sales, no middleman, can get these castors at the best price, don't hesitate to contact our sales manager immediately.
You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.
Swipe right to see the full table
Castor Number | ![]() Bearing Type | ![]() ![]() Wheel Diameter & Width of Tread ( mm ) | ![]() Offset ( mm ) | ![]() Centre Hole ( mm ) | ![]() Overall Height ( mm ) | ![]() Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|
07H1S80B34BPAPX | ![]() | 80x34 | 36 | ф13 | 99 | 150 |
07H1S80B34BPARX | ![]() | |||||
07H1S100B36BPAPX | ![]() | 100x36 | 36 | ф13 | 124 | 180 |
07H1S100B36BPARX | ![]() | |||||
07H1S125B40BPAPX | ![]() | 125x40 | 36 | ф13 | 154 | 200 |
07H1S125B40BPARX | ![]() | |||||
07H1S160B40BPAPX | ![]() | 160x40 | 52 | ф16.8 | 185 | 300 |
07H1S160B40BPARX | ![]() | |||||
07H1S200B46BPAPX | ![]() | 200x46 | 54 | ф16.8 | 230 | 300 |
07H1S200B46BPARX | ![]() |
Tile Floor
Resin Cement Floor
