Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Offset ( mm ) |  Centre Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|
| 07H1S80C38JEADX |  | 80x38 | 36 | Φ13 | 99 | 105 |
| 07H1S100C40JEADX | | 100x40 | 36 | Φ13 | 124 | 170 |
| 07H1S125C40JEADX | | 125x40 | 36 | Φ13 | 154 | 200 |
| 07H1S160C50JEADX | | 160x50 | 52 | Φ16.8 | 185 | 300 |
| 07H1S200C50JEADX | | 200x50 | 54 | Φ16.8 | 230 | 300 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Aluminium
Castor Housing
Bolt Hole
Mounting Type
Bolt Hole
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Black
Description

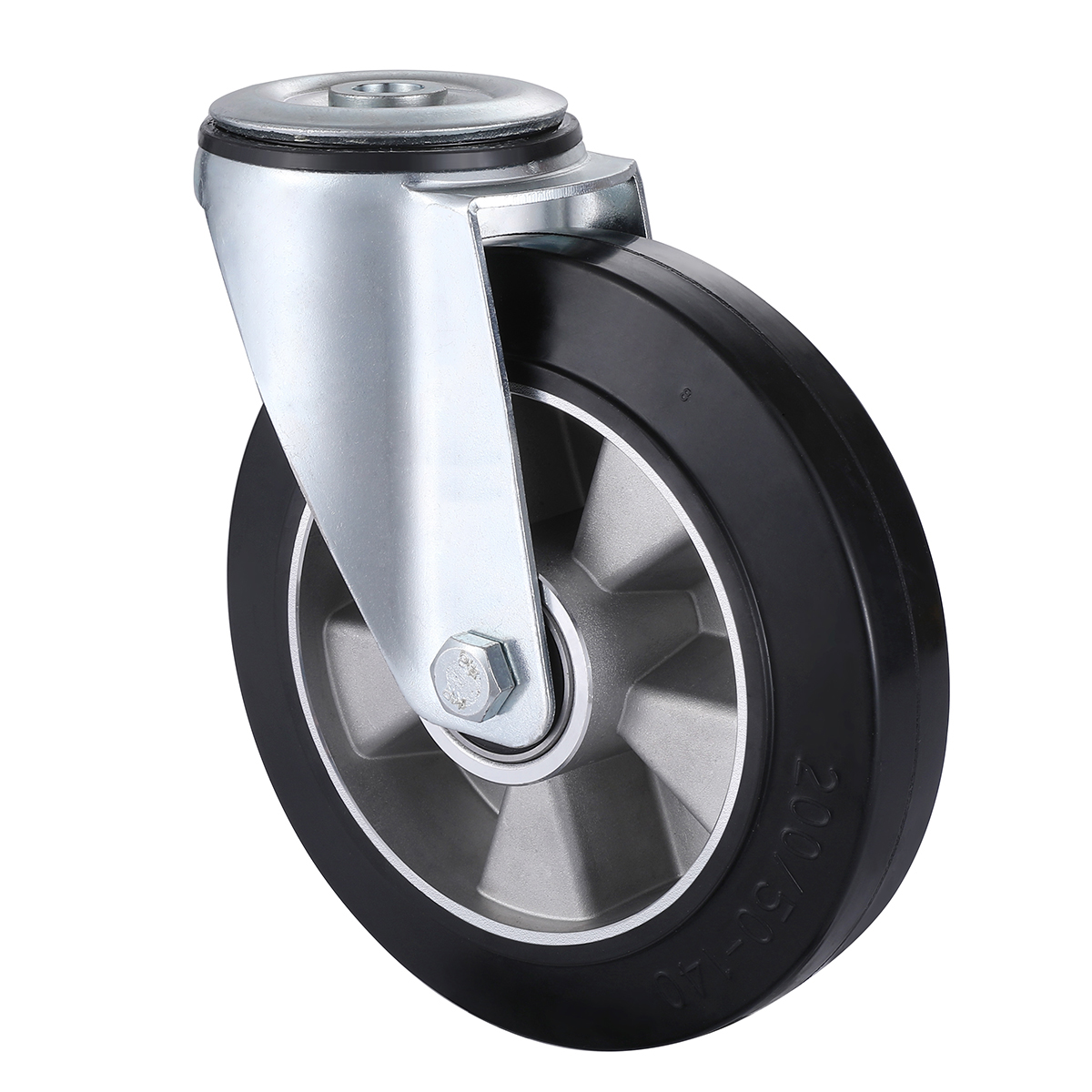

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, black elastic rubber wheel tread, aluminium wheel centre, double ball bearings, diameter 80mm to 200mm, load capacity 105kg to 300kg, Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping,
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
