Best Industrial Grey Thermoplastic Polyurethane Bolt Hole Castors Distributor

Industrial Bolt Hole Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Best Industrial Grey Thermoplastic Polyurethane Bolt Hole Castors Distributor

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number
wheel bearing

Bearing Type

size-diameter.jpg size-tread-width.jpg

Wheel Diameter & Width of Tread

( mm )


Offset

( mm )


Centre Hole

( mm )


Overall Height

( mm )


Load Capacity

( kg 4km/h )

07H1S80D34BUPRXcastors roller bearing80x3436Φ 1399120
07H1S80D34BUPBAsingle ball bearing
07H1S100D34BUPRXcastors roller bearing100x3436Φ 13124160
07H1S100D34BUPBAsingle ball bearing
07H1S125D36BUPRXcastors roller bearing125x3636Φ 13154200
07H1S125D36BUPBAsingle ball bearing
07H1S160D40BUPRXcastors roller bearing160x4052Φ 16.8185300
07H1S160D40BUPDAdoubles ball bearing
07H1S200D50BUPRXcastors roller bearing200x5054Φ 16.8230300
07H1S200D50BUPDAdoubles ball bearing

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Bolt Hole

Mounting Type

Bolt Hole

Castor Bearing

Single ball bearing

Temperature Range

-40 to +80°C

Hardness of Tread

92°+3 Shore A

Threadguard

Small plastic

Color

Grey

Description

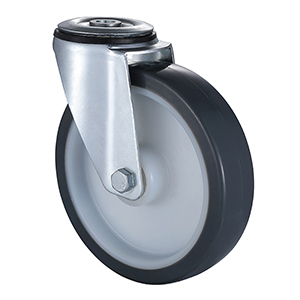

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 92+3, Grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 80mm to 200mm, load capacity 120kg to 300kg, Applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.


Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
