Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Offset ( mm ) | Centre Hole ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|
07H1S100D36DSRBA | 100x36 | 36 | ф13 | 124 | 150 | |
07H1S100D36DSRRA | ||||||
07H1S125D36DSRBA | 125x40 | 36 | ф13 | 154 | 200 | |
07H1S125D36DSRRA |
Castor Information
Wheel Tread Material
Nylon
Wheel Centre Material
Polyamide
Castor Housing
Bolt Hole
Mounting Type
Bolt Hole
Castor Bearing
Single ball bearing
Temperature Range
-20 to +80°C
Hardness of Tread
no
Threadguard
Small plastic
Color
Grey
Description

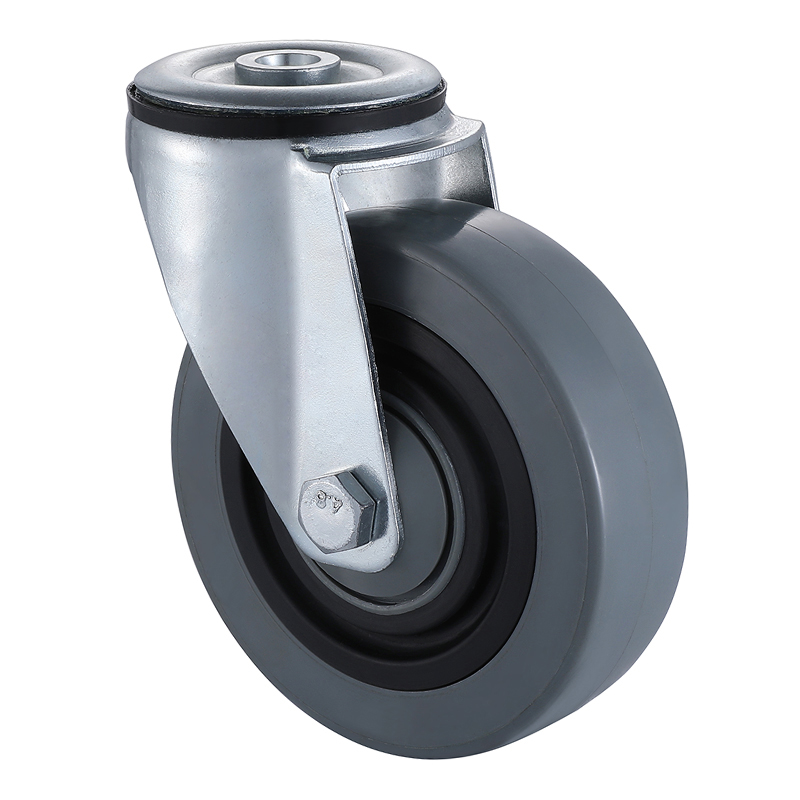

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, can be rotated freely in 360 degrees, grey nylon sandwich wheel, diameter 100mm and 125mm, load capacity 160kg to 200kg, these castors are made by Taishan to provide you with the highest quality and reliability. We are also proud to offer a variety of other industrial castor solutions, so if you need help or can't find what you need, please contact us.
Applicable Terrain
Tile Floor
Resin Cement Floor
