Top Industrial Yellow Polyurethane Bolt Hole Castors with Total Brake Factory Direct Sales

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Bearing Type	Wheel Diameter & Width of Tread ( mm )	Offset ( mm )	Centre Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07H1RB100E38JUADX		100x38	40	Φ13	124	180
07H1RB125E38JUADX		125x38	40	Φ13	154	200

Castor
Number

Bearing Type

Wheel Diameter & Width of Tread

( mm )

Offset

( mm )

Centre Hole

( mm )

Overall Height

( mm )

Load Capacity

( kg 4km/h )

07H1RB100E38JUADX

100x38

Φ13

124

180

07H1RB125E38JUADX

125x38

Φ13

154

200

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Bolt Hole and Total Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-40 to +80°C

Hardness of Tread

94° Shore A

Threadguard

None

Color

Yellow

Description

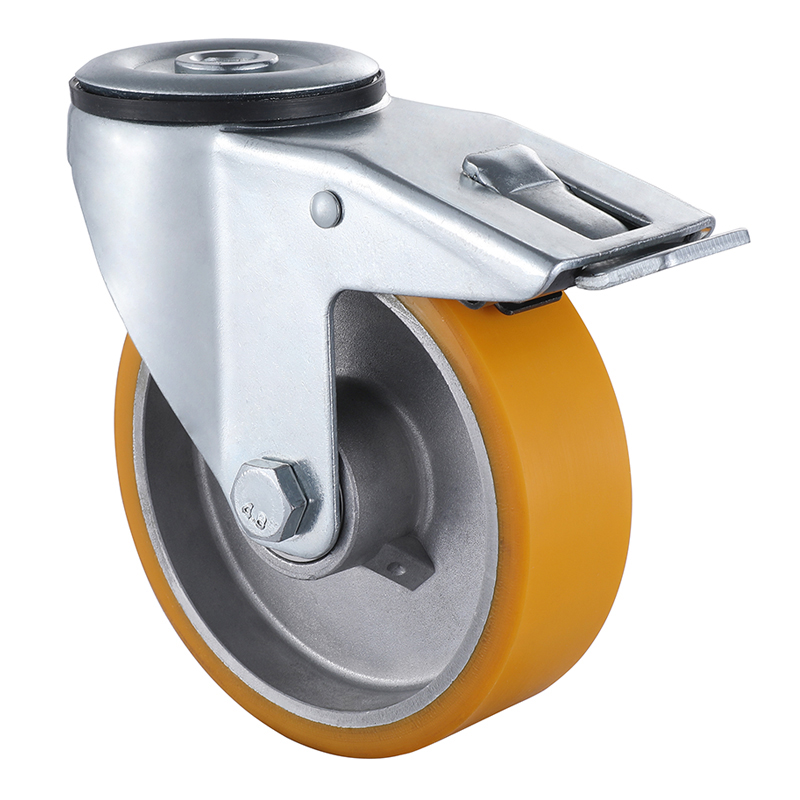

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 94, yellow polyurethane wheel tread, casting aluminium wheel centre, diameter 100mm and 125mm, load capacity 180kg to 200kg, These castors are made by Taishan to provide you with the highest quality and reliability. We are also proud to offer a variety of other industrial castor solutions, so if you need help or can't find what you need, please contact us.

Applicable Terrain
