Top Industrial Grey Polyurethane Bolt Hole Castor Wheels with Total Brake OEM Service

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Offset ( mm )	Centre Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07H1RB80D34BUPRX	80x34	36	Φ 13	99	120
07H1RB80D34BUPBA	80x34	36	Φ 13	99	120
07H1RB100D34BUPRX	100x34	40	Φ 13	124	160
07H1RB100D34BUPBA	100x34	40	Φ 13	124	160
07H1RB125D36BUPRX	125x36	40	Φ 13	154	200
07H1RB125D36BUPBA	125x36	40	Φ 13	154	200
07H1RB160D40BUPRX	160x40	60	Φ 16.8	185	300
07H1RB160D40BUPDA	160x40	60	Φ 16.8	185	300
07H1RB200D50BUPRX	200x50	60	Φ 16.8	230	300
07H1RB200D50BUPDA	200x50	60	Φ 16.8	230	300

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Bolt Hole and Total Brake

Mounting Type

Bolt Hole

Castor Bearing

Single ball bearing

Temperature Range

-40 to +80°C

Hardness of Tread

92°+3 Shore A

Threadguard

Small plastic

Color

Grey

Description

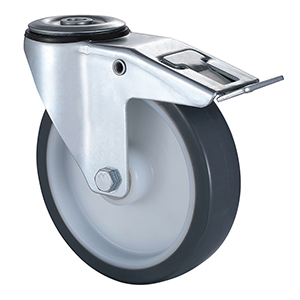

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 92+3, Grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 80mm to 200mm, load capacity 120kg to 300kg, These castors are from the leading castor manufacturers in the industry, factory direct sales, no middleman, can get these castors at the best price, don't hesitate to contact our sales manager immediately.
