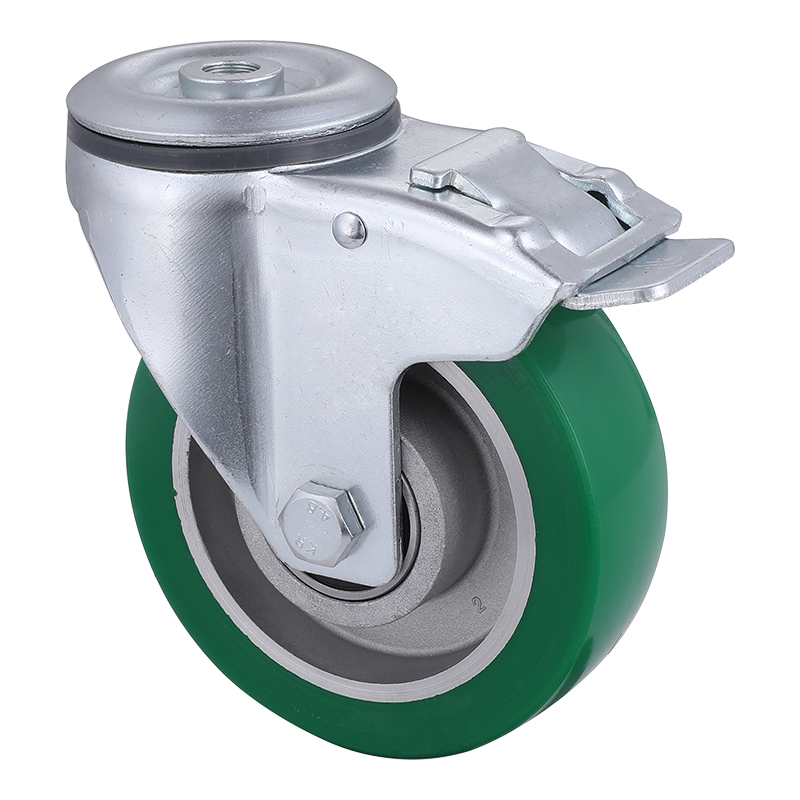

Top Industrial Green Elastic Polyurethane Bolt Hole Castor Wheels with Total Brake Factory

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Offset ( mm )	Centre Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09H1RB80H38JUHDX	80x38	40	Φ13	107	200
09H1RB100H40JUHDX	100x40	40	Φ13	131	250
09H1RB125H40JUHDX	125x40	40	Φ13	154	300

Castor
Number

Bearing Type

Wheel Diameter & Width of Tread

( mm )

Offset

( mm )

Centre Hole

( mm )

Overall Height

( mm )

Load Capacity

( kg 4km/h )

09H1RB80H38JUHDX

80x38

Φ13

107

200

09H1RB100H40JUHDX

100x40

Φ13

131

250

09H1RB125H40JUHDX

125x40

Φ13

154

300

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Bolt Hole and Total Brake

Mounting Type

Bolt Hole

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 92+3, green elastic polyurethane wheel tread, aluminium wheel centre, diameter 80mm to 200mm, load capacity 200kg to 300kg. These castors are from the leading castor manufacturers in the industry, factory direct sales, no middleman, can get these castors at the best price, don't hesitate to contact our sales manager immediately.

Applicable Terrain
