Hight Quality Industrial Blue Elastic Rubber Bolt Hole Castors with Total Brake Taishan Factory

Industrial Bolt Hole Castors with Total Braked

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Hight Quality Industrial Blue Elastic Rubber Bolt Hole Castors with Total Brake Taishan Factory

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number
wheel bearing

Bearing Type

size-diameter.jpg size-tread-width.jpg

Wheel Diameter & Width of Tread

( mm )


Offset

( mm )


Centre Hole

( mm )


Overall Height

( mm )


Load Capacity

( kg 4km/h )

09H1RB80A35CEPRXcastors roller bearing80x3540Φ13107100
09H1RB100A36CEPRXcastors roller bearing100x3640Φ13131150
09H1RB125A36CEPRXcastors roller bearing125x3640Φ13154200

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Polyamide

Castor Housing

Bolt Hole and Total Brake

Mounting Type

Bolt Hole

Castor Bearing

Roller bearing

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Blue

Description

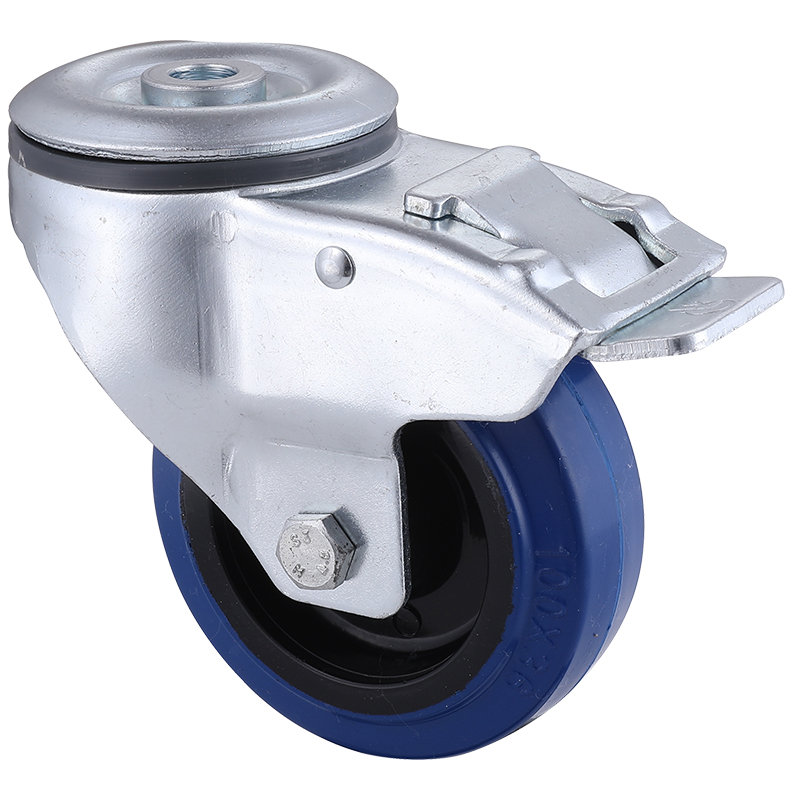

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, blue elastic rubber wheel tread, black nylon wheel centre, roller bearings, diameter 100mm to 125mm, load capacity 100kg to 200kg, Applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.

Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor

Not Paved

Not Paved

Expanded Metal

Expanded Metal

Floor With Chips

Floor With Chips
