Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Offset ( mm ) |  Centre Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|
| 07H1RB100H40JUHDX |  | 100x40 | 40 | Φ13 | 124 | 180 |
| 07H1RB125H40JUHDX | | 125x40 | 40 | Φ13 | 154 | 200 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Aluminium
Castor Housing
Bolt Hole and Total Brake
Mounting Type
Bolt Hole
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
85° Shore A
Threadguard
None
Color
Green
Description

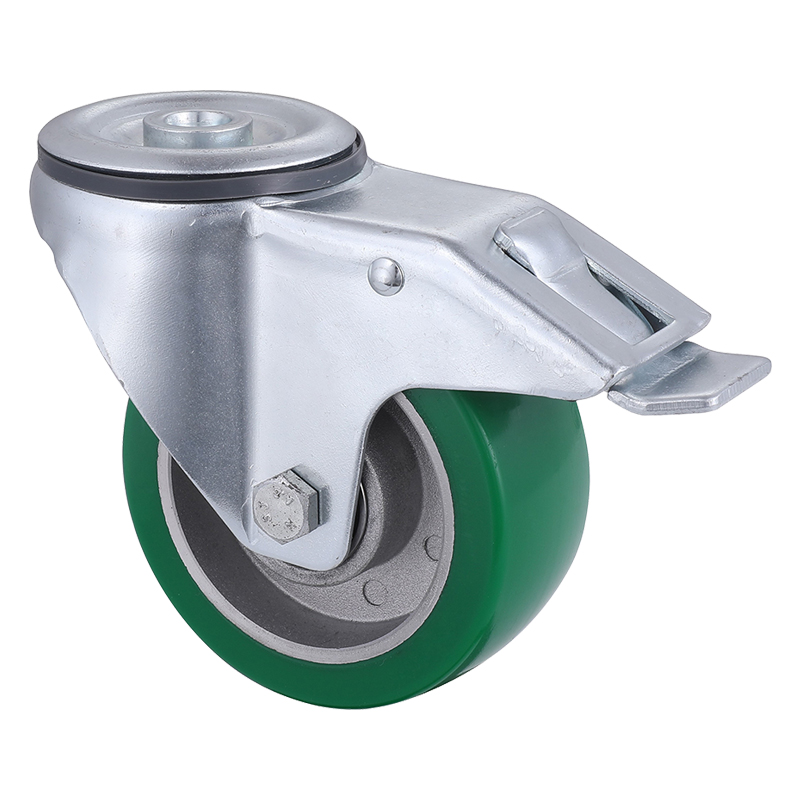

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 85, green elastic polyurethane wheel tread, aluminium wheel centre, diameter 100mm and 125mm, load capacity 180kg to 200kg. These castors are made by Taishan to provide you with the highest quality and reliability. We are also proud to offer a variety of other industrial castor solutions, so if you need help or can't find what you need, please contact us.
Applicable Terrain
Tile Floor
Resin Cement Floor
