Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Offset ( mm ) |  Centre Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|
| 07H1RB80C38JEADX |  | 80x38 | 36 | Φ13 | 99 | 105 |
| 07H1RB100C40JEADX | | 100x40 | 40 | Φ13 | 124 | 170 |
| 07H1RB125C40JEADX | | 125x40 | 40 | Φ13 | 154 | 200 |
| 07H1RB160C50JEADX | | 160x50 | 60 | Φ16.8 | 185 | 300 |
| 07H1RB200C50JEADX | | 200x50 | 60 | Φ16.8 | 230 | 300 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Aluminium
Castor Housing
Bolt Hole and Total Brake
Mounting Type
Bolt Hole
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Black
Description

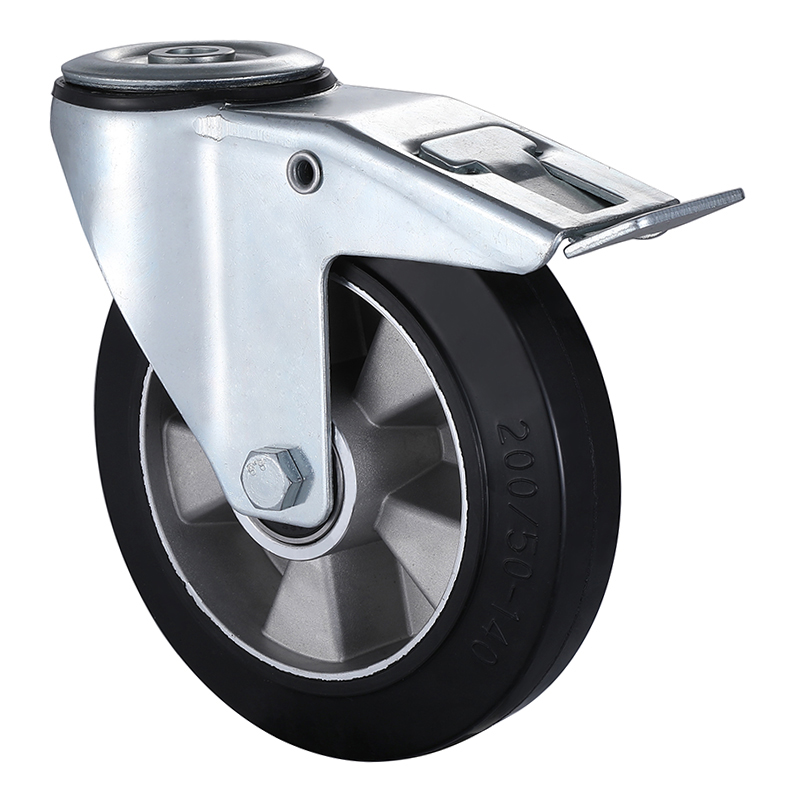

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, black elastic rubber wheel tread, casting aluminium wheel centre, double ball bearings, diameter 80mm to 200mm, load capacity 105kg to 300kg, Our quality is all about creating an easier working life for caster users.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
