Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Offset ( mm ) |  Centre Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|
| 07H1RB80A35CEPRX |  | 80x35 | 36 | Φ13 | 99 | 100 |
| 07H1RB100A36CEPRX | | 100x36 | 40 | Φ13 | 124 | 150 |
| 07H1RB125A36CEPRX | | 125x36 | 40 | Φ13 | 154 | 200 |
| 07H1RB160A48CEPRX | | 160x48 | 60 | Φ16.8 | 185 | 300 |
| 07H1RB200A48CEPRX | | 200x48 | 60 | Φ16.8 | 230 | 300 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Polyamide
Castor Housing
Bolt Hole and Total Brake
Mounting Type
Bolt Hole
Castor Bearing
Roller bearing
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Blue
Description

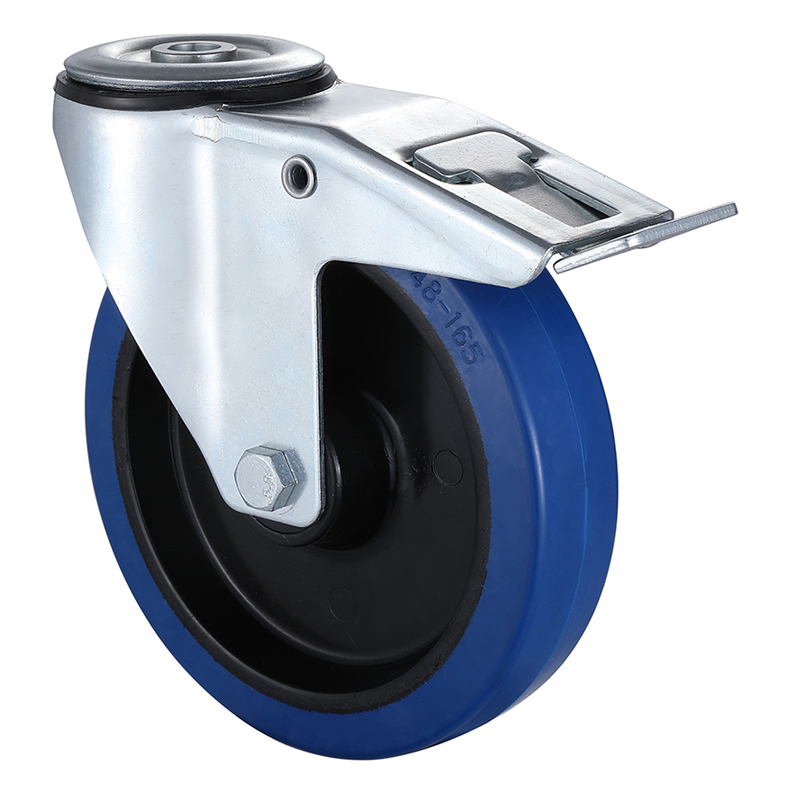

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, blue elastic rubber wheel tread black nylon wheel centre roller bearings, diameter 80mm to 200mm, load capacity 100kg to 300kg, Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
